Weight2100g
HD Image2026/9/7 16:03:24 | OER-501_HD_Image_3.png | png | Download
IO Input1 x fire input, 4 x case input
Datasheet2025/12/6 4:32:24 | UNV OER-501 Single-Door Access Controller.pdf | English | pdf | Preview | Download
IO Output2
IndicatorPower indicator: Steady red when the device is connected to power Operation indicator: Blinks green when the operation is normal Door lock indicator: Steady green when the lock is open Fault indicator 485 indicator Charging indicator Network indicator

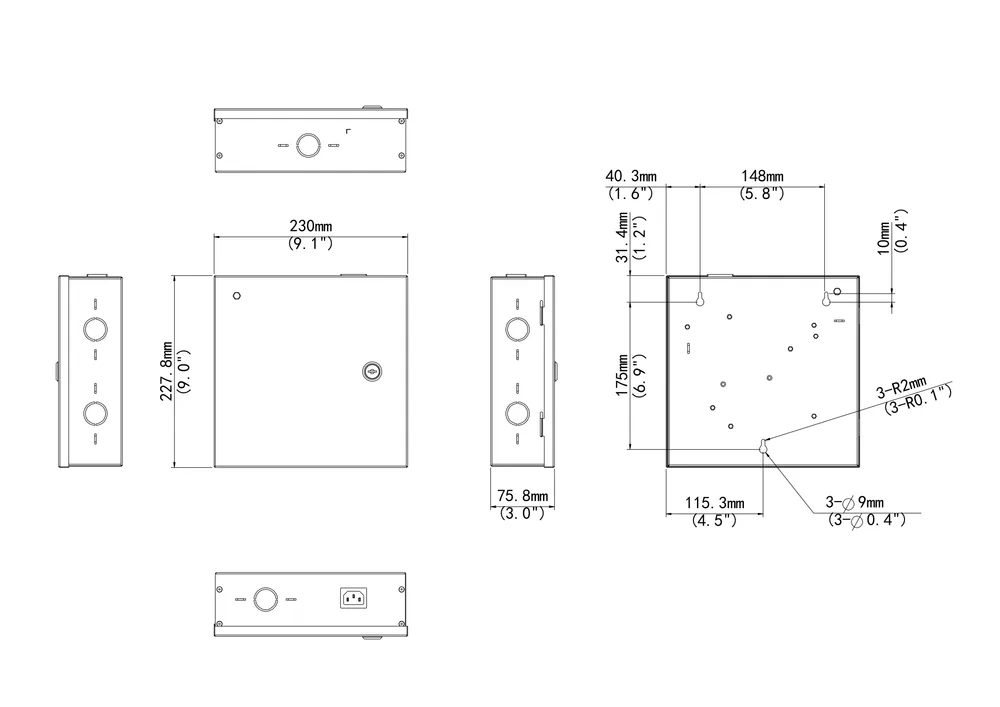

Dimensions2026/9/7 16:03:24 | OER-501_Dimensions_1.png | Download
ApplicationIndoor
Quick Guide2026/7/3 5:06:11 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/5/26 11:12:35 | UNV-Access Controller User Manual.pdf | English | pdf | Preview | Download
Mount MethodWall mount
Power Output1 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A)
Card CapacityCommon card + personnel password: 22,000 Duress card + duress password: 1,000 Other cards: 100
Tamper ButtonNot support
Time Template256
Check TemplateSupports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period
Event Capacity50,000
NDAA CompliantSupport
RS485 Interface1
Holiday Template256
Network Interface1 x 100Mbps Ethernet interface
Wiegand Interface2 x Wiegand input
Communication ModeTCP/IP
Spare Power SupplyDC12V/7AH, user-prepared
Air Circuit Breaker/
Door Lock Interface1 x door lock control (NC+/NO+/COM) 1 x door magnet, 1 x exit button
Rated Input VoltageAC100V to AC240V (50/60Hz)
Operating Temperature-30°C to 65°C
Dimensions (L x W x H)230mm*227.8mm*75.8mm
QPTS-B6303.2.2.250430.zipEnglish | zip | Download
Number Of Controllable Door1
