CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
USBFront panel: 1 × USB2.0, Rear panel: 1 × USB3.0
SATA2 SATA Interfaces
ClassDate | Title | Download
RS232N/A
RS4851
TitleLanguage | Type | Download
Alarm In8-ch
CapacityUp to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
HD Image2026/9/7 9:58:28 | NVR502-08B-P8_HD_Image_3.png | png | Download
Alarm Out2-ch
Datasheet2025/12/16 16:35:08 | UNV NVR502-B-P Series Network Video Recorder.pdf | English | pdf | Preview | Download
Max PowerMax 30 W for single port, Max 130 W in total | Max 30 W for single port, Max 240 W in total | Max 30 W for single port, Max 240 W in total
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

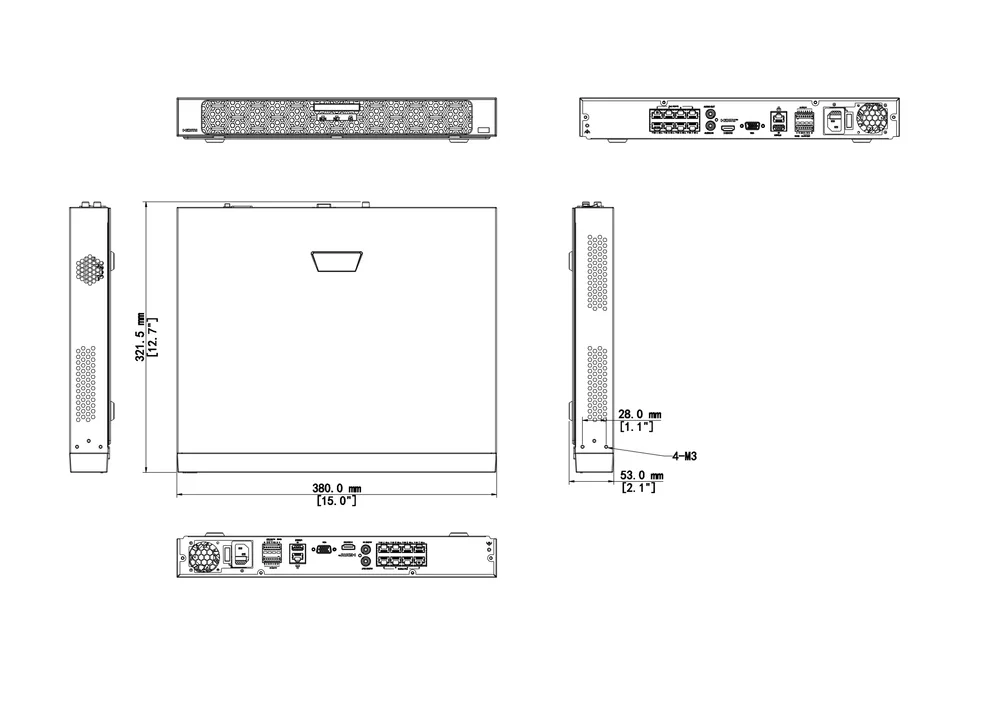

Dimensions2026/9/7 9:58:28 | NVR502-08B-P8_Dimensions_1.png | Download
Disk GroupSupport
VCA SearchMotor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Quick Guide2026/6/24 15:45:36 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2026/6/23 21:00:19 | UNV-Network Video Recorders User Manual(New UI).pdf | English | pdf | Preview | Download
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Power SupplyAC 100 to 240 V
Power SwitchSupport
Remote Users128
Smart by IPCAll channels (up to 8 images/s in total) Face Detection, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
CertificationCE; FCC; UL; RoHS; WEEE
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
PoE Interface8 RJ45 10 M/100 M self-adaptive Ethernet Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Two-way Audio1-ch, RCA (Using the audio input and output)
IP Video Input8-ch | 16-ch | 32-ch
Decoding FormatUltra 265, H.265, H.264
Disk Array TypeRAID 1
RCA Audio Input1-ch
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Liveview Display1/4/6/8/9 | 1/4/6/8/9/16 | 1/4/6/8/9/16/25/32
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio CompressionG.711A, G.711U
Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Redundant StorageSupport
Incoming Bandwidth320 Mbps
Outgoing Bandwidth160 Mbps
Supported StandardIEEE 802.3at, IEEE 802.3af
Decoding CapabilityUltra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 | Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Corridor Mode Screen3/4/5/7/9 | 3/4/5/7/9/10/12/16 | 3/4/5/7/9/10/12/16/32
Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Weight (without HDD)≤ 2.6Kg (5.73lb)
FTP/Schedule/Event Snapshot4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Synchronous Playback in Local8-ch | 16-ch | 16-ch
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page.
Power Consumption (without HDD)≤ 20W
