CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
POSAll channels
USBFront panel: 1 × USB2.0, Rear panel: 1 × USB3.0
SATA2 SATA Interfaces
ClassDate | Title | Download
RS232N/A
RS4851
TitleLanguage | Type | Download
Alarm In8-ch
CapacityUp to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C)
HD Image2026/9/18 2:05:38 | NVR302-16B-P16-IQ_HD_Image_3.png | png | Download
Alarm Out2-ch
Datasheet2026/7/16 9:24:58 | UNV NVR302-16B-P16-IQ Network Video Recorder.pdf | English | pdf | Preview | Download
Max PowerMax 30 W for single port, Max 240 W in total
ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP

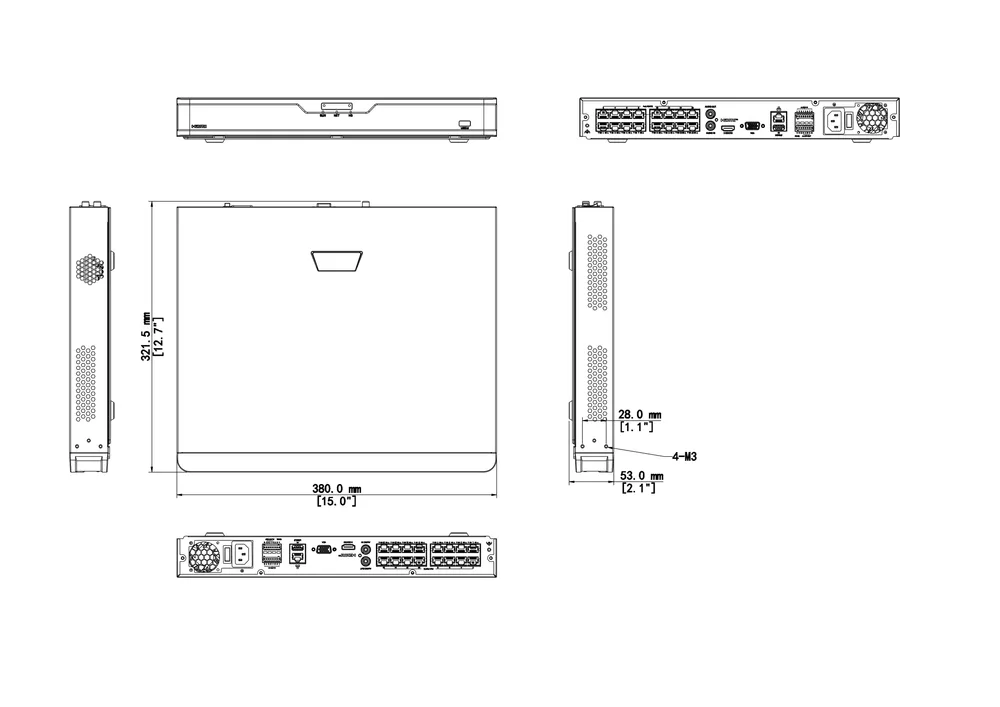

Dimensions2026/9/18 2:05:38 | NVR302-16B-P16-IQ_Dimensions_1.png | Download
Ip Speaker32-ch
VCA SearchAcuSearch, AcuTrack, , Face detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Quick Guide2026/6/24 15:45:36 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2026/6/23 21:00:19 | UNV-Network Video Recorders User Manual(New UI).pdf | English | pdf | Preview | Download
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Power SupplyAC 100~240V
Smart by IPCAll channels (up to 8 images/s in total) Face Detection, Face detection, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVRFace Detection, Face detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
CertificationCE; FCC; UL; RoHS; WEEE
General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
PoE Interface16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Two-way Audio1-ch,RCA(Using the audio input and output)
IP Video Input16-ch
Decoding FormatUltra 265,H.265,H.264
RCA Audio Input1-ch
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Liveview Display1/4/6/8/9/16
Max Remote Users128
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio CompressionG.711A, G.711U
Network Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
Incoming Bandwidth160 Mbps
Outgoing Bandwidth128Mbps
Supported StandardIEEE 802.3at, IEEE 802.3af
Decoding CapabilitySmart Off：2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 Smart On：2 x 4K@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30
Working Temperature-10 ℃ ~ + 55 ℃ (+14 ℉ ~ +131 ℉)
Corridor Mode Screen3/4/5/7/9/10/12/16
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Weight (without HDD)≤ 2.7Kg (6.0lb)
Acu Track PerformanceAll channels with UNV SIP/UMD Camera
face detection by NVRUp to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)
Acu Search PerformanceAll channels with UNV SIP/UMD Camera
Vehicle Number LibraryUp to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
Smart by NVR Analyzer ModeSingle Mode (), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack), Modes cannot active simultaneously, only one mode can active at a time.
FTP/Schedule/Event Snapshot4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution)
Synchronous Playback in Local16-ch
SIP by NVR with normal camerasUp to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal camerasUp to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Power Consumption (without HDD)≤ 12W
