CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B
USBRear panel: 2 × USB2.0
SATA1 SATA Interface
ClassDate | Title | Download
RS232N/A
RS485N/A
TitleLanguage | Type | Download
Alarm InN/A
CapacityUp to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size) | Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature)
HD Image2026/9/7 13:57:50 | NVR301-04S3-P4_HD_Image_3.png | png | Download
Alarm OutN/A
Datasheet2026/6/23 2:10:24 | UNV NVR301-S3-P Series Network Video Recorder.pdf | English | pdf | Preview | Download
Max PowerMax 30 W for single port, Max 54 W in total | Max 30 W for single port, Max 75 W in total | Max 30 W for single port, Max 75 W in total
ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP

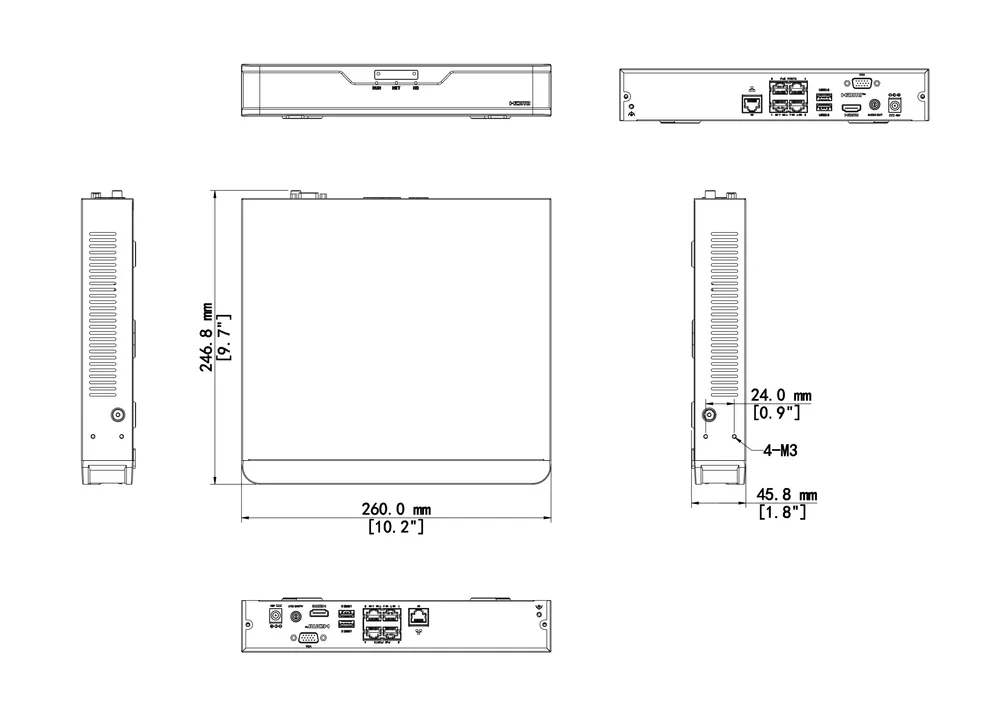

Dimensions2026/9/7 13:57:50 | NVR301-04S3-P4_Dimensions_1.png | Download
VCA SearchBehavior Search
VGA Output1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
HDMI Output4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz | HDMI:4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Quick Guide2026/6/24 15:45:36 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2026/6/23 21:00:19 | UNV-Network Video Recorders User Manual(New UI).pdf | English | pdf | Preview | Download
GUI Language21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian | 21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Power SupplyDC 48 V/1.35 A | DC 52 V/1.8 A | DC 52 V/1.8 A
Remote Users128
Smart by IPCTotal 4-ch(Face Detection, SIP, UMD)
CertificationCE; FCC; UL; RoHS; WEEE
General AlarmAuto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
PoE Interface4 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface | 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
IP Video Input4-ch | 8-ch | 16-ch
Decoding FormatUltra 265, H.265, H.264
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Liveview Display1/4 | 1/4/6/8/9 | 1/4/6/8/9/16
RCA Audio Output1-ch
Working Humidity≤ 90% RH (non-condensing)
Audio CompressionG.711A, G.711U
Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
Incoming Bandwidth64 Mbps
Outgoing Bandwidth48 Mbps
Supported StandardIEEE 802.3at, IEEE 802.3af
Decoding Capability1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30 | 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30, 16 x D1@25
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉)
Corridor Mode Screen3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16
Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
VCA Detection by IPCFace Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
Weight (without HDD)≤ 1.1Kg (2.43lb)
FTP/Schedule/Event Snapshot1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) | 1-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) | 1-ch snapshot, up to D1 resolution
Synchronous Playback in Local4-ch | 8-ch | 16-ch
Decoding Capability DescriptionThe resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width | The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Power Consumption (without HDD)≤ 9W
