MACSupport (up to 4K). Supports clearing the dynamic MAC address
POEAllows to view PoE status and power. Allows to enable/disable PoE power supply.
QoSSupports port rate limitation. Supports broadcast storm control.
VLANSupports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
ClassDate | Title | Download
TitleLanguage | Type | Download
SystemAllows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name. Supports single-user management, user authentication, and password modification. Allows to view other switches information on the same network, up to 32 switches. Allows to view the connected video devices information, up to 64 devices .
Weight0.67KG
EthernetSupports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports a link aggregation group (consist of two uplink ports)
HD Image2026/9/18 2:05:38 | NSW3000-8T2GT-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeA (1236), ModeB (4578)
SecuritySupports port isolation (only for the downlink ports). Supports locking login IP address, up to 64 addresses can be locked
Datasheet2026/6/23 1:06:08 | UNV NSW3000-8T2GT-POE-IN Cloud Managed Ethernet PoE Switch.pdf | English | pdf | Preview | Download
IndicatorPower: Off: Abnormal power input Green: Normal power input Yellow: The total PoE power is higher than 85% of the total power of the device Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data
Max.Power130W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

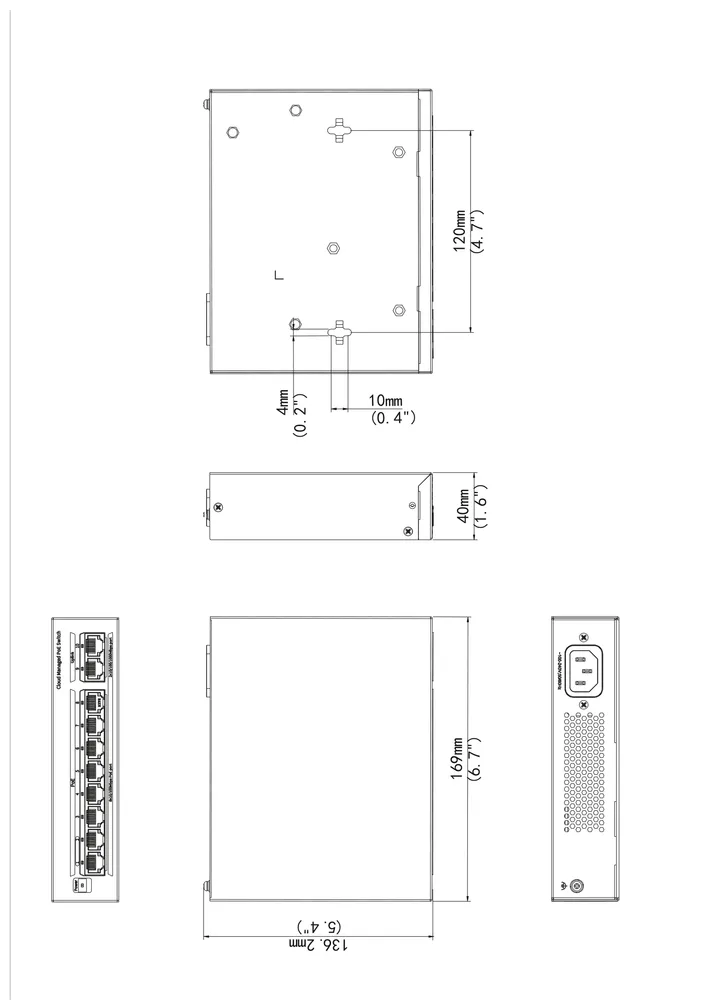

Dimensions2026/9/18 2:05:38 | NSW3000-8T2GT-POE-IN_Dimensions_1.png | Download
Ports Type8 x 10/100Mbps POE port (RJ45) , 2 x Gigabit port (RJ45)
MaintenanceSupports N:1 port mirroring. Supports unified software configuration, management, and search. Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
Prior Ports1 to 2
Quick Guide2026/6/24 16:32:24 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2026/4/28 11:15:51 | UNV-Ethernet Switch User Manual.pdf | English | pdf | Preview | Download
Cooling Fans0
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyAC: 100 to 240V, 50/60Hz
Max.PoE PowerMaximum total power: 120W Maximum PoE power for single port: 30W
Packet Buffer2 M bit
Loop DetectionLoop Detection
NDAA CompliantSupport
Operating Humidity5% to 90% RH, noncondensing
Switching capacity5.6 Gbps
Dimensions (W×D×H)169mm*132mm*40mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance4.17Mpps
