MACSupport (up to 8K) . Supports clearing the dynamic MAC address
POEAllows to view PoE status and power. Allows to enable/disable PoE power supply. Supports HiPoE.
QoSSupports port rate limitation. Supports broadcast storm control.
VLANSupports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
ClassDate | Title | Download
TitleLanguage | Type | Download
SystemAllows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name Supports single-user management, user authentication, and password modification Allows to view other switches information on the same network, up to 32 switches Allows to view the connected video devices information, up to 64 devices
Weight2.98kg
EthernetSupports full duplex, half duplex, and auto-negotiation working modes. Supports port auto-negotiation rate. Supports port priority flow control. Supports a link aggregation group (consist of two uplink ports) Supports port flow statistics Supports enabling/disabling ports
HD Image2026/9/17 2:05:26 | NSW3000-25GT1GP1GC-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeA (1236), ModeB (4578)
SecuritySupports port isolation (only for the downlink ports) Supports locking login IP address, up to 64 addresses can be locked
Datasheet2026/8/27 11:35:57 | UNV NSW3000-25GT1GP1GC-POE-IN Cloud Managed Gigabit Ethernet PoE Switch.pdf | English | pdf | Preview | Download
IndicatorPower: Off: Abnormal power input. Green: Normal power input. PoE: Off: The PoE port is not supplying power Steady on: The PoE port is supplying power normally Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data MAX: Off: The total PoE power is less than 80% of the total power of the device Steady on: The total PoE power is higher than 85% of the total power of the device
Max.Power390W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Dimensions2026/9/17 2:05:26 | NSW3000-25GT1GP1GC-POE-IN_Dimensions_1.png | Download
Ports Type24 x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP 1 x Gigabit Combo
MaintenanceSupports N: 1 port mirroring Supports unified software configuration, management, and search Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software.
Prior Ports1 to 8
Quick Guide2026/7/3 5:04:56 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2026/4/28 11:15:51 | UNV-Ethernet Switch User Manual.pdf | English | pdf | Preview | Download
Cooling Fans1
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyAC: 100 to 240V, 50/60Hz
Max.PoE PowerMaximum total power: 370W Maximum PoE power for single port (port 1-6): 45W Maximum PoE power for single port (port 7-24): 30W
Packet Buffer4 M bit
Loop DetectionLoop Detection
NDAA CompliantSupport
Operating Humidity5% to 90% RH, noncondensing
Switching capacity54Gbps

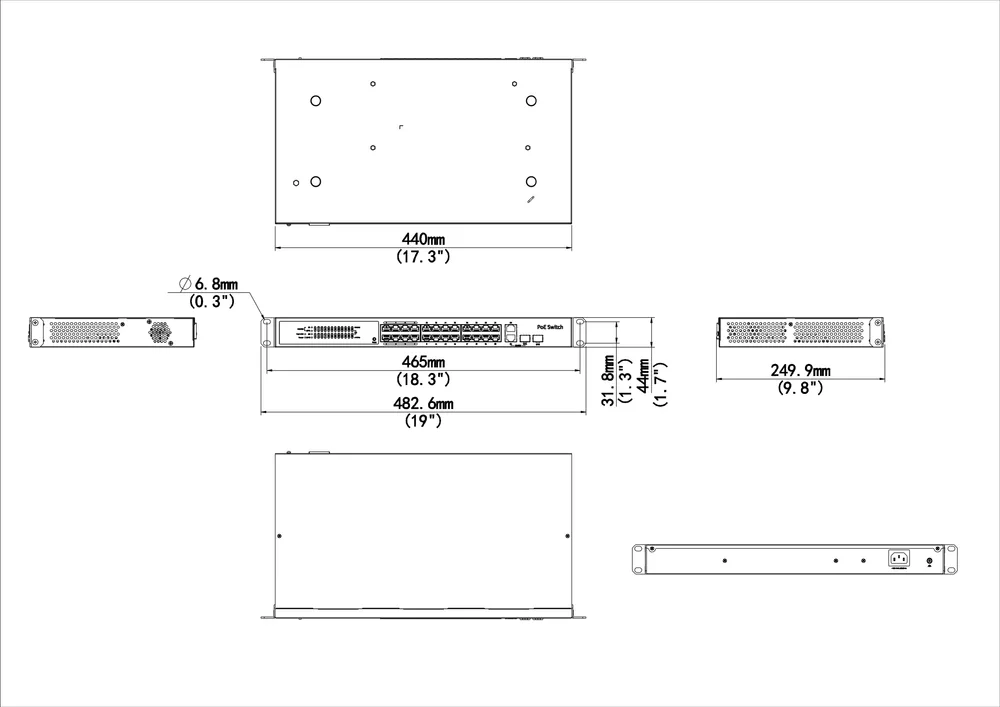

Dimensions (W×D×H)440*244.8*44mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance40.176Mpps
