MACSupport static MAC, up to 32.
POEAllows to view PoE status and enable/disable PoE power supply in the APP
VLANallows up to 10 VLANs with IDs from 1 to 4094
ClassDate | Title | Download
TitleLanguage | Type | Download
SystemAllows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name.
Weight0.85KG
EthernetSupports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to eight ports).
HD Image2026/9/18 2:05:38 | NSW2100-9GT1GP-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeA (1236),ModeB (4578)
SecuritySupports port isolation
Datasheet2026/6/22 9:41:39 | UNV NSW2100-9GT1GP-POE-IN Lite Cloud Managed Gigabit Ethernet PoE Switch.pdf | English | pdf | Preview | Download
IndicatorPower: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power is higher than 85% of the total power of the device. Link/Act: Off: Disconnected to the port On: Connected to the port. Blinking: Transmitting data.
Max.Power125W
Dimensions2026/9/18 2:05:38 | NSW2100-9GT1GP-POE-IN_Dimensions_1.png | Download

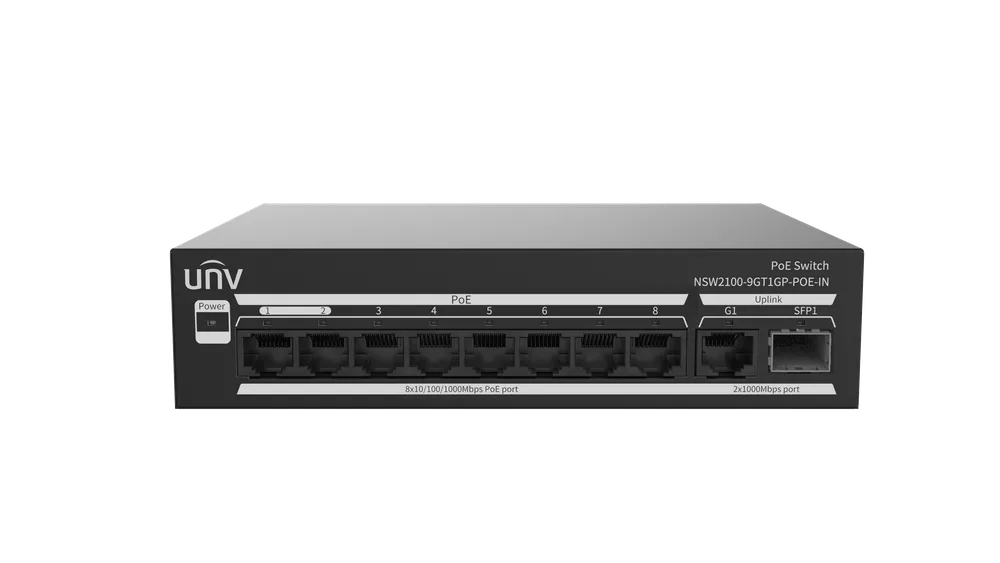

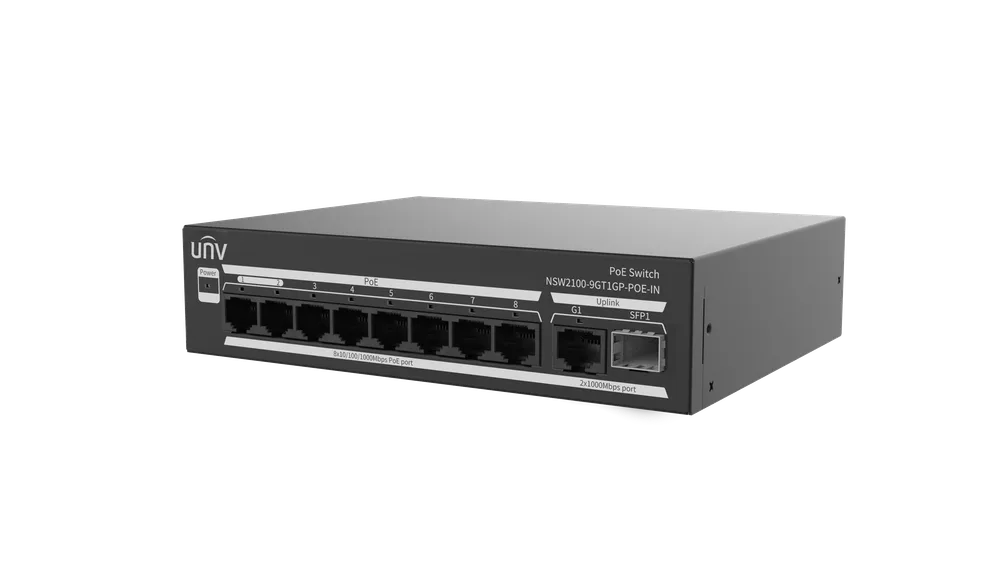

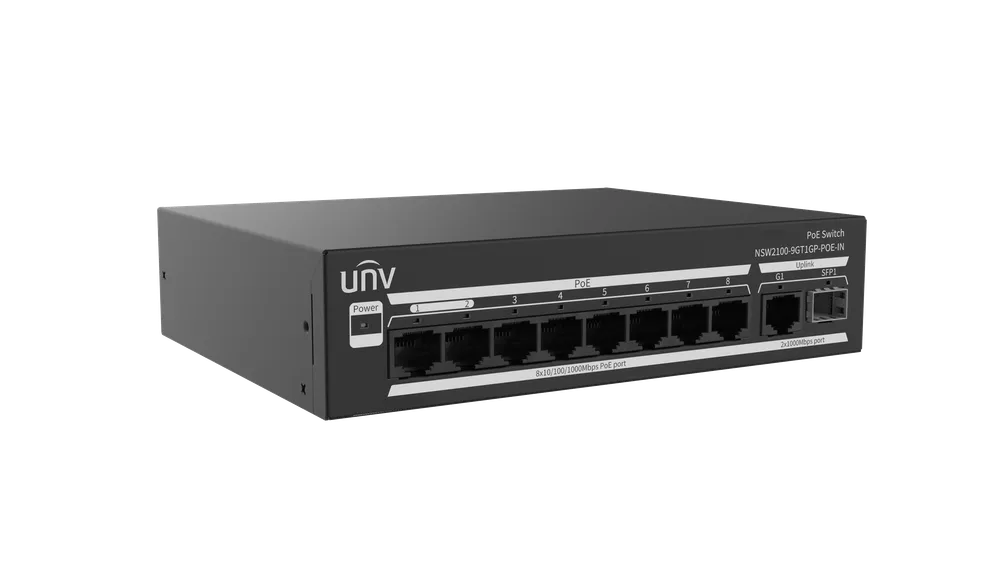

Ports Type8x 10/100/1000Mbps PoE port (RJ45) 1 x 10/100/1000Mbps port (RJ45) 1 x Gigabit SFP
MaintenanceSupports N:1 port mirroring. Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
Prior Ports1 to 2
Quick Guide2026/7/3 5:08:19 | Quick Guide.pdf | English | pdf | Preview | Download
User Manual2025/10/27 8:58:38 | UNV-Ethernet Switch User Manual.pdf | English | pdf | Preview | Download
Cooling Fans0
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyAC: 100V to 240V, 50/60Hz
Max.PoE PowerMax capacity: 120W Maximum PoE power for single port: 30W
Packet Buffer4 M bit
Loop DetectionLoop Detection
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity20Gbps
Dimensions (W×D×H)169*132*40mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance14.88Mpps
