MACSupport static MAC, up to 32.
POEAllows to view PoE status and enable/disable PoE power supply in the APP
VLANallows up to 32 VLANs with IDs from 1 to 4094
ClassDate | Title | Download
TitleLanguage | Type | Download
SystemAllows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name
Weight2.11kg
EthernetSupports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics
HD Image2026/9/18 2:05:38 | NSW2100-17GT1GP1GC-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeA (1236), ModeB (4578)
SecuritySupports port isolation
Datasheet2026/6/23 7:47:56 | UNV NSW2100-17GT1GP1GC-POE-IN Lite Cloud Managed Gigabit Ethernet PoE Switch.pdf | English | pdf | Preview | Download
IndicatorPower: Off: Abnormal power input. Green: Normal power input. PoE: Off: No PoE power supply Steady on: PoE power supply is normal. PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification. Steady on : The POE power supply power of the whole machine is greater than 85% of the specification. Link/Act: Off: Disconnected to the port On: Connected to the port Blinking: Transmitting data.
Max.Power265W

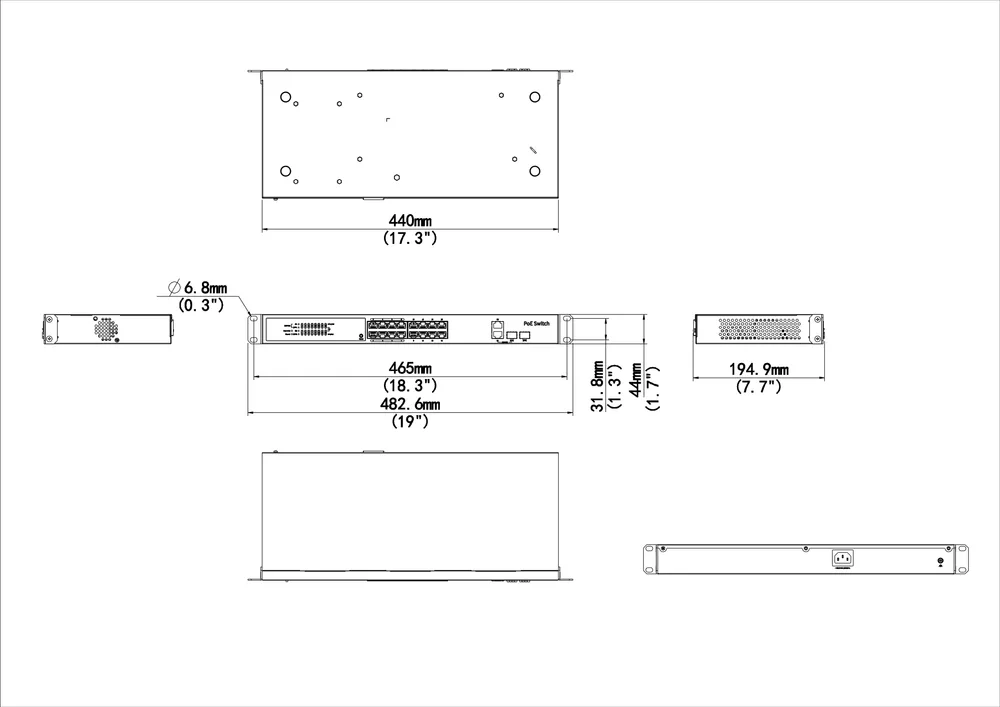

Dimensions2026/9/18 2:05:38 | NSW2100-17GT1GP1GC-POE-IN_Dimensions_1.png | Download
Ports Type16x 10/100/1000Mbps PoE port (RJ45), 1 x 10/100/1000Mbps port (RJ45) , 1 x Gigabit SFP, 1 x Gigabit Combo
MaintenanceSupports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software.
Prior Ports1 to 8
Quick Guide2026/7/3 5:08:19 | Quick Guide.pdf | English | pdf | Preview | Download
Cooling Fans1
PoE StandardIEEE 802.3af, IEEE 802.3 at
Power SupplyAC: 100V to 240V, 50/60Hz
Max.PoE PowerMax capacity: 250W Maximum PoE power for single port: 30W
Packet Buffer4 M bit
Loop DetectionLoop Detection
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity38Gbps
Dimensions (W×D×H)440*189.8*44mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance28.272 Mpps
