MAC16K
ClassDate | Title | Download
Weight2.12KG
HD Image2026/9/18 2:05:38 | NSW2020-16T1GT1GC-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeB (4578)
Datasheet2026/6/23 8:43:49 | UNV NSW2020-16T1GT1GC-POE-IN Ethernet POE Switches.pdf | English | pdf | Preview | Download
IndicatorPOWER: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Max.Power265W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az

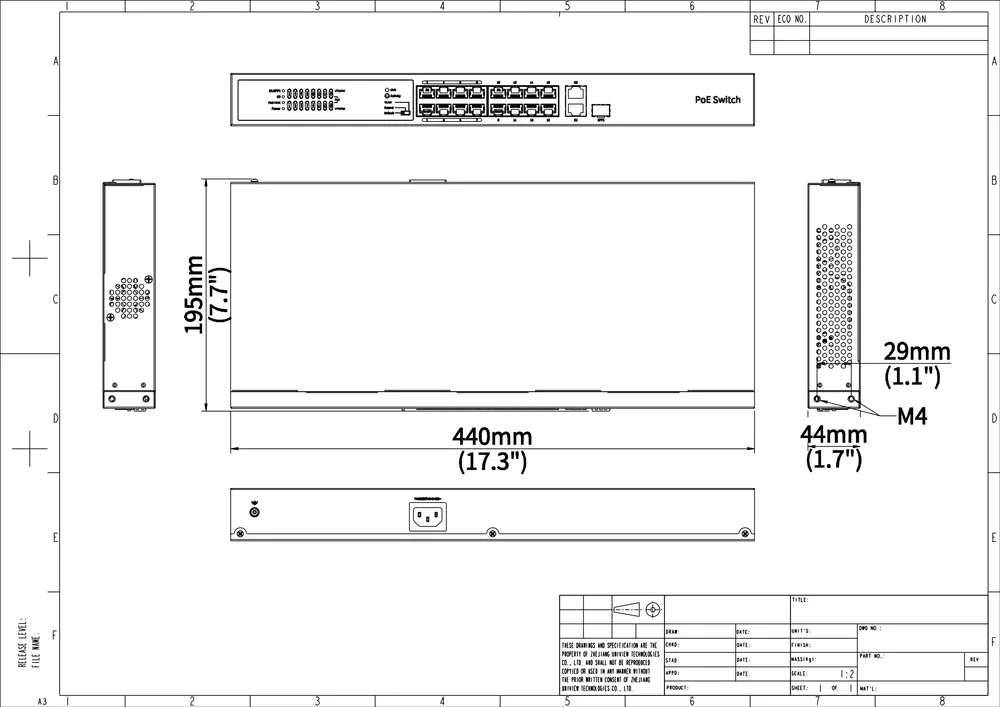

Dimensions2026/9/18 2:05:38 | NSW2020-16T1GT1GC-POE-IN_Dimensions_1.png | Download
Ports Type16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Prior Ports1 to 8
Quick Guide2026/6/24 16:00:39 | Quick Guide.pdf | English | pdf | Preview | Download
Cooling Fans1
PoE StandardIEEE 802.3 at, IEEE 802.3af
Power SupplyAC: 100 to 240V, 50/60Hz
Working ModeDefault (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
Max.PoE PowerMax capacity:250W Max capacity for single port: 30W
Packet Buffer4 M bit
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity7.2 Gbps
Dimensions (W×D×H)440*195*44mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance5.36Mpps
