MAC1K
ClassDate | Title | Download
Weight0.29KG
HD Image2026/9/18 2:05:38 | NSW2020-10T-POE-IN_HD_Image_3.png | png | Download
PoE ModeModeB (4578)
Datasheet2026/6/23 9:19:17 | UNV NSW2020-10T-POE-IN Ethernet PoE Switches.pdf | English | pdf | Preview | Download
IndicatorPOWER: Steady on: AC input is normal Off: No AC input No PoE Indicator PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Max.Power94W
StandardsIEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

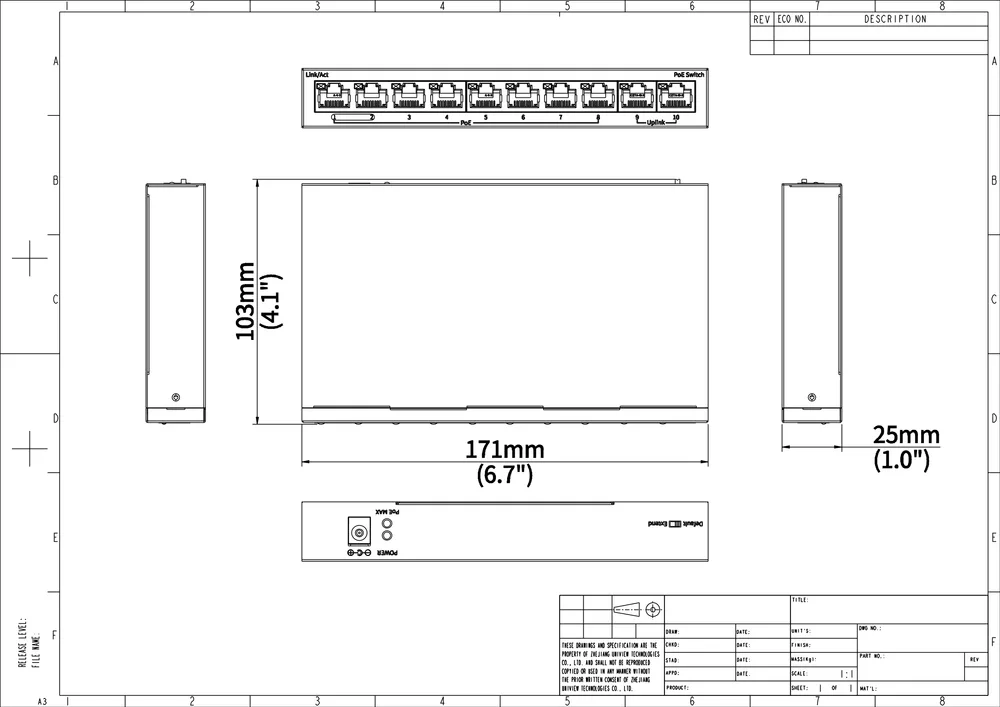

Dimensions2026/9/18 2:05:38 | NSW2020-10T-POE-IN_Dimensions_1.png | Download

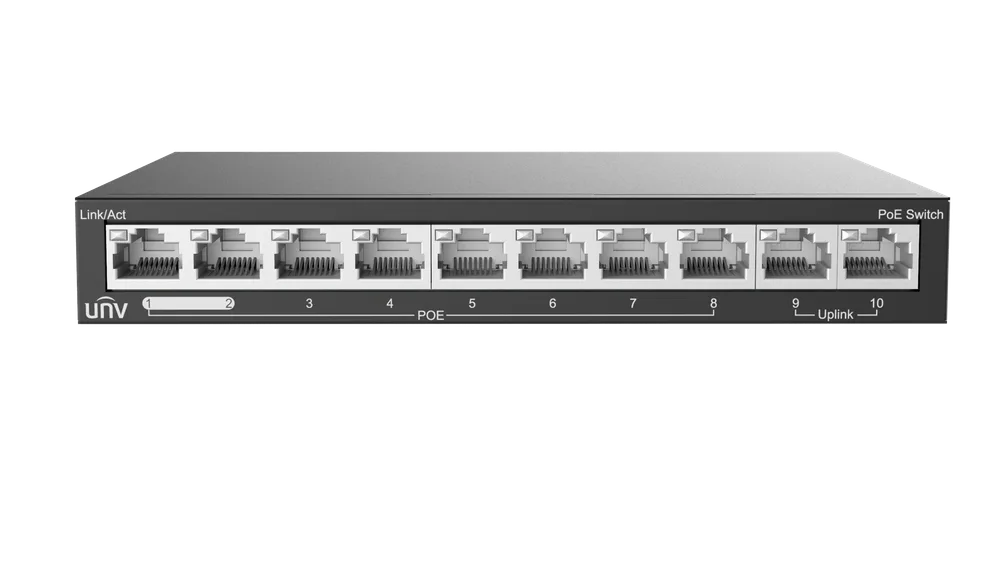

Ports Type10×100Mbps network ports (RJ45), including 8 PoE ports
Prior Ports1 to 2
Quick Guide2026/6/24 16:00:39 | Quick Guide.pdf | English | pdf | Preview | Download
Cooling Fans0
PoE StandardIEEE 802.3 at, IEEE 802.3af
Power SupplyDC: 48/51V, powered by adapter(100 to 240V, 50/60Hz)
Working ModeDefault (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Max.PoE PowerMax capacity:88W Max capacity for single port: 30W
Packet Buffer448K bit
NDAA CompliantSupport
Operating Humidity10% to 90% (noncondensing)
Switching capacity2 Gbps
Dimensions (W×D×H)171*103*25mm
Operating Temperature0°C to 45°C (32°F to 113°F)
Forwarding performance1.49Mpps
