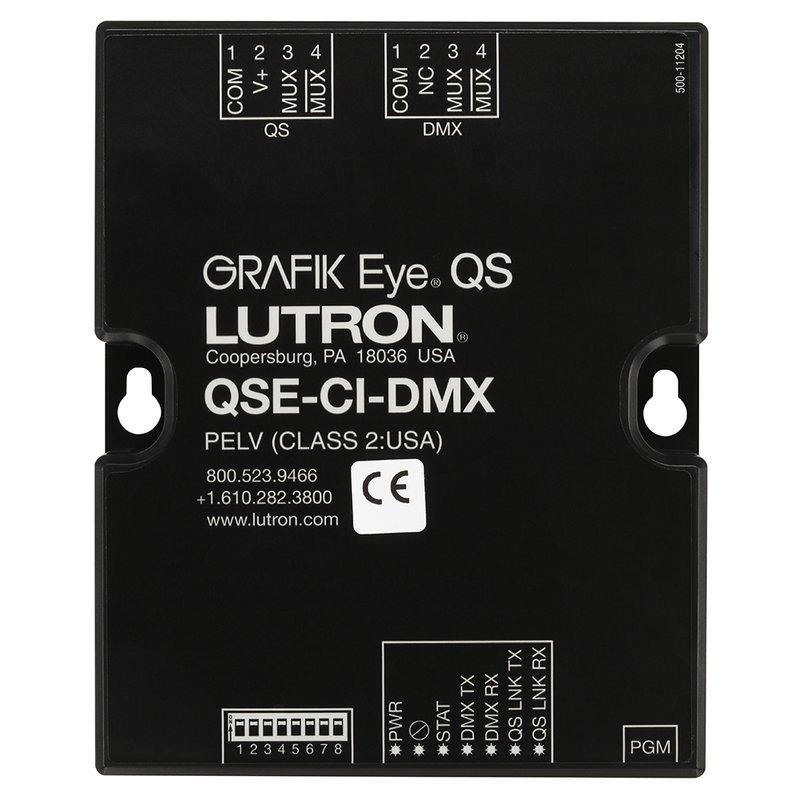

Lutron QSE-CI-DMX QS DMX Control Interface, 24VDC, 60mA

Lutron QSE-CI-DMX QS DMX Control Interface, 24VDC, 60mA

Operates either in a standalone QS system or a Quantum system. Performs different functions depending on the system in which it is operating. Map any zone on a GRAFIK Eye QS control unit or any Quantum zone to any single DMX512 channel. Map any zone on a GRAFIK eye QS control unit or any Quantum zone simultaneously to three DMX512 channels for RGB/CMY color-control. Integral RGB/CMY lookup table that maps GRAFIK Eye QS zone intensities or Quantum zone intensities to RGB/CMY values (colors). RGB/CMY table can be customized by using the Lutron QS Color Configuration Tool (PC application available on the CD packaged with the QSE-CI DMX, and at wwutroom/qs), or within the Quantum Q-Design software.

Main Features

• Map any zone on a GRAFIK Eye QS control unit, any Quantum zone, or any HomeWorks zone to any single DMX512 channel
• Map any zone on a GRAFIK Eye QS control unit, any Quantum zone, or any HomeWorks zone simultaneously to three DMX512 channels for RGB / CMY color-control
• Integral RGB / CMY lookup table that maps GRAFIK Eye QS zone intensities, Quantum zone intensities, or HomeWorks zone intensities to RGB / CMY values (colors)
