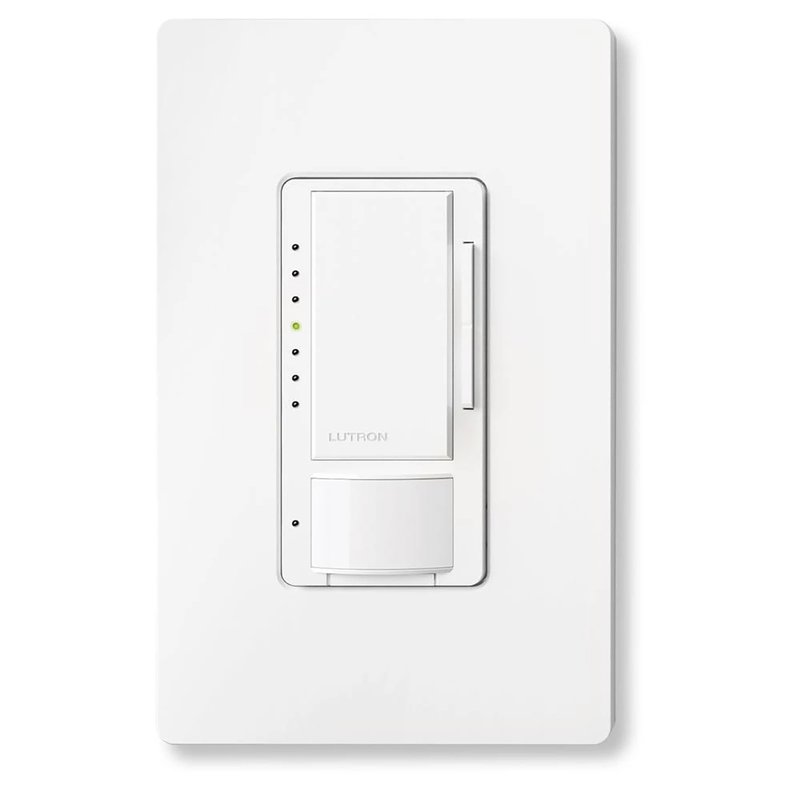

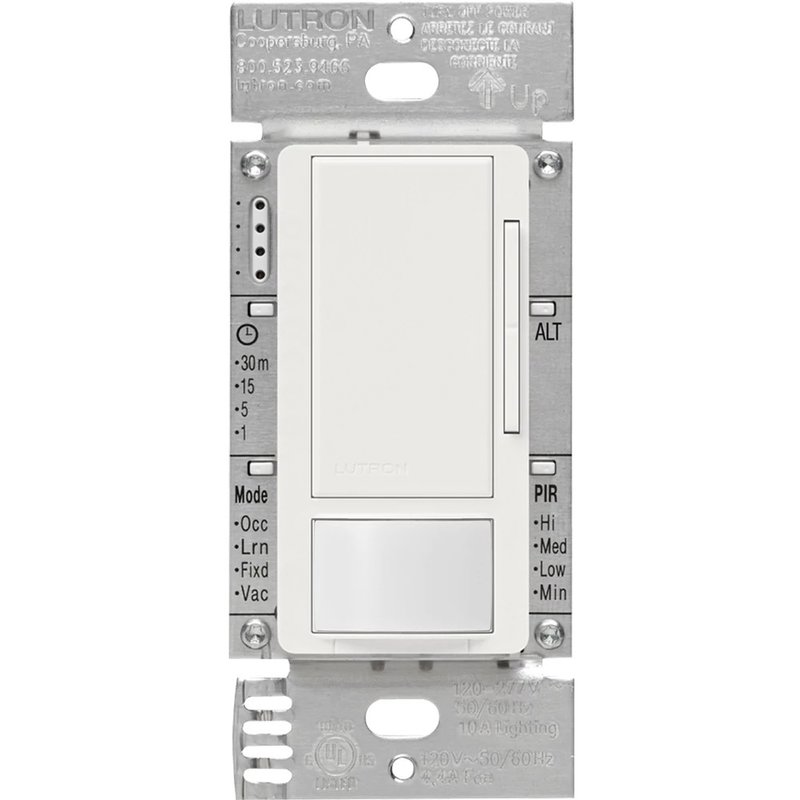

Lutron MS-Z101-WH Maestro 0-10V Motion Sensor / Dimmer Switch, 8A, Neutral Optional, 120-277V, Single Pole / Multi-Location, White

Lutron MS-Z101-WH Maestro 0-10V Motion Sensor / Dimmer Switch, 8A, Neutral Optional, 120-277V, Single Pole / Multi-Location, White

Passive infrared sensors that automatically control the lights in an area. These sensors detect heat from occupants moving within an area to determine when the space is occupied. Combines a Maestro 0-10 V dimmer with an occupancy sensor. Controls 1-10 VDC electronic fluorescent ballast or LED driver load types. Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30'x30' (9mx9m) major motion coverage and 20'x20' (6mx6m) minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 3, 5, 15, or 30 minutes). Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level. Adjustable sensitivity level: High, med, low, min. Off warning fades lights to off over a period of 10 seconds. Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.). Adaptive switching algorithm for extended relay life. Smart ambient light detection (ALD). Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches. High-end trim and low-end trim to adjust maximum and minimum light levels. Selectable dimming curve-linear or square law. Miswire and incompatible load alert.

Main Features

• On a single-tap, lights fade ON or OFF
• On a double-tap, lights go to full ON
• Light levels can be fine-tuned by pressing and holding the di mming rocker until the desired light level is reached
• High-end trim (adjust maximum light level that can be achieved, for energy savings)
• Low-end trim (adjust minimum light level that can be dimmed down, to prevent flickering lights
