Lutron LU-PH3-B 96W Hardwired Power Interface with Flying Leads, works with Lumaris RGB + Tunable White LED Tape Light, 120 / 277V Input, 24V Output

Lutron LU-PH3-B 96W Hardwired Power Interface with Flying Leads, works with Lumaris RGB + Tunable White LED Tape Light, 120 / 277V Input, 24V Output

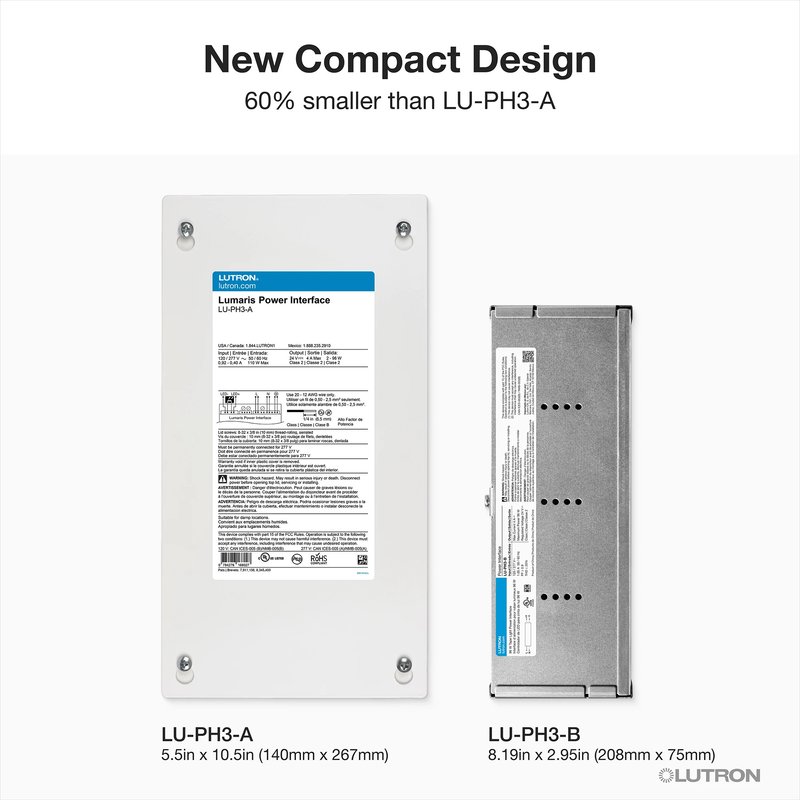

The Lutron 96W hardwired power interface, now 60% smaller, allows for more versatility during project installations, and can power up to 3 Lumaris multi-channel wireless controllers and 32.8' of Lumaris RGB + tunable white LED tape. This power interface is also equipped with flying leads that allow for easier wiring to the Multi-Channel Wireless Controller.

Main Features

• Includes (1) 96W hardwired power interface with flying leads

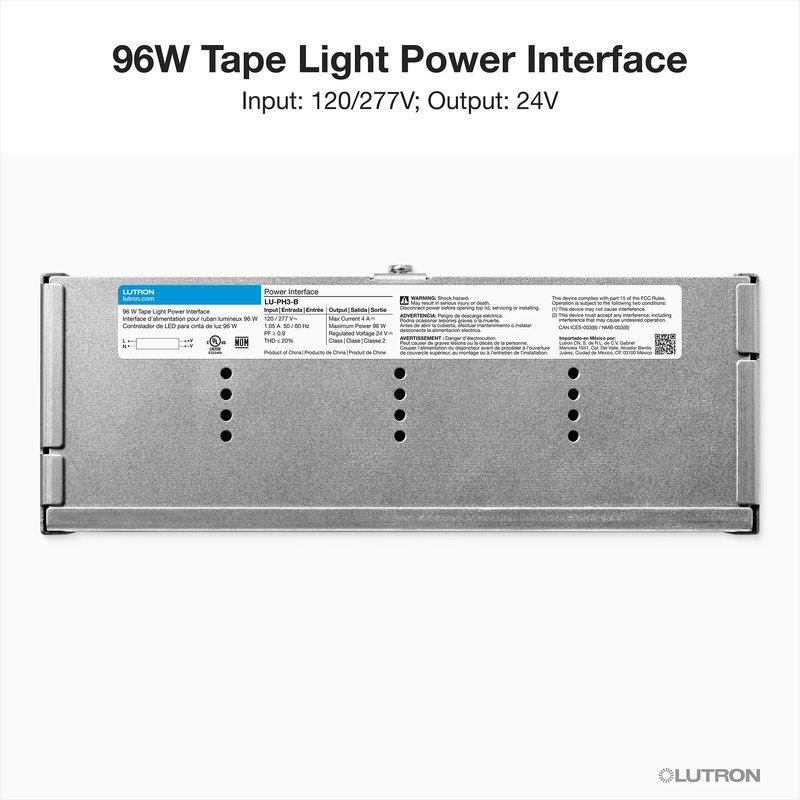

• Input: 120/277V, (50/60Hz); Output 24V
• Accepts 12 AWG to 20 AWG; see wiring section on product spec sheet for specific length configurations

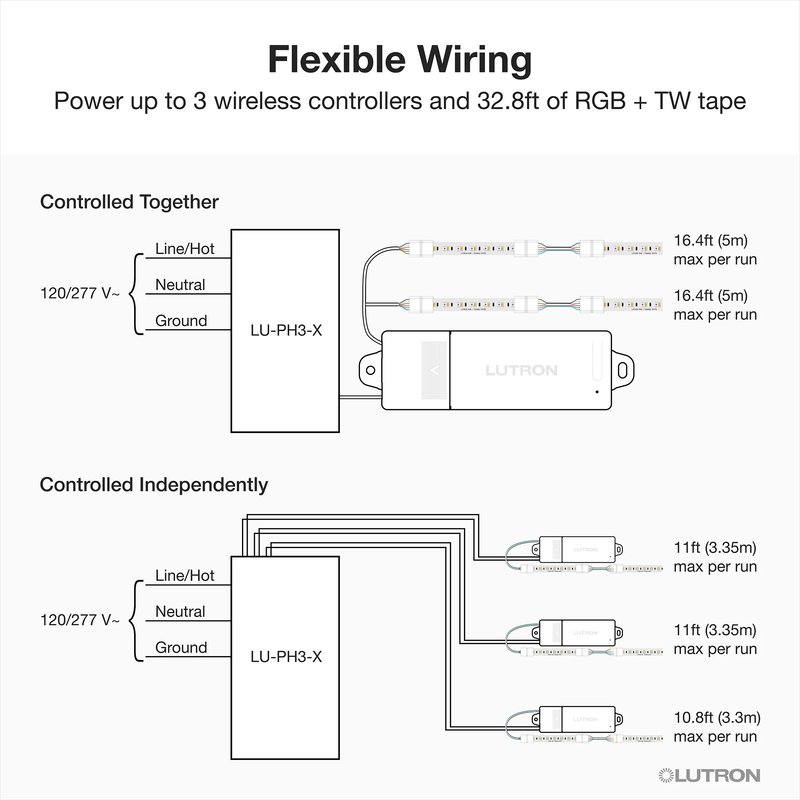

• For independent control, wireless controllers must be homerun back to the power interface
• For zone or grouped applications, wireless controllers can either be homerun or T-tapped back to the hardwired power interface
• Must be used with a Lumaris Multi-Channel Wireless Controller for RadioRA3 (RRL-MWCL-WH) or the Lumaris Wireless Controller for HomeWorks QSX (HWL-MWCL-WH)
• Indoor damp/Dry location rating; Output short-circuit and overload-protection
