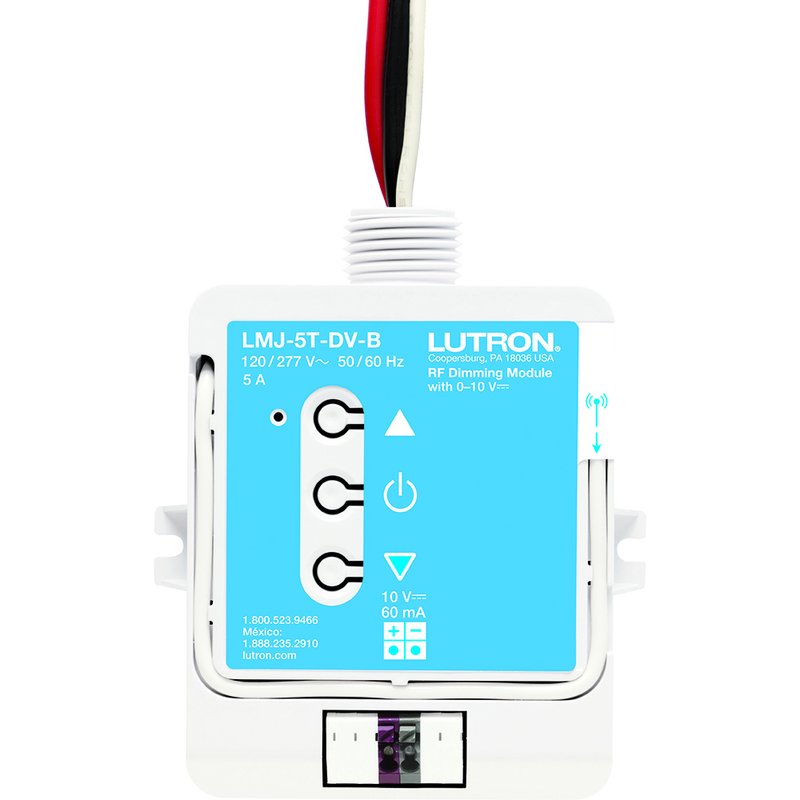

Lutron LMJ-5T-DV-B RF 0-10V Dimming Module Control, 5A Switching, 60mA 0-10V Dimming, 120 / 277V

Lutron LMJ-5T-DV-B RF 0-10V Dimming Module Control, 5A Switching, 60mA 0-10V Dimming, 120 / 277V

Radio frequency (RF) control that operates 0-10V controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and Homeworks systems. 0-10VDC control link automatically sources or sinks up to 60mA to third party fixtures. Switches line voltage up to 5A. Configurable high- and low-end trim. Utilizes Lutron Clear Connect RF Technology. Mounts to an electrical junction box through a 1/2" (21mm trade-size) knockout opening. Complies with requirements for use in a compartment handling environmental air (plenum) per NEC 2011 300.22 (C)(3).

Main Features

• Compatible with RA2 Select, RadioRA 2, HomeWorks
• RF control for 0-10V ballasts or LED drivers
• Sources or sinks up to 60 mA to fixtures
• Switches line voltage up to 5 A
• Configurable high- and low-end trim
• Utilizes Lutron Clear Connect RF technology
• Mounts to electrical junction box
• Complies with NEC 2011 300.22(C)(3)
• Complies with NEC 2011 300.22(C)(3)
