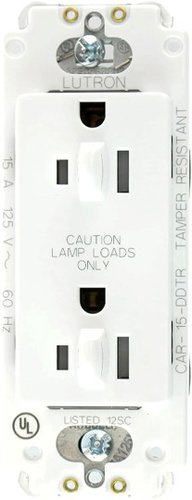

Lutron CAR-15-DDTR-WH Claro 15A Dual Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Gloss Finish, White

Lutron CAR-15-DDTR-WH Claro 15A Dual Dimming, Tamper Resistant Duplex Receptacle, Decorator-Style Outlet, Gloss Finish, White

Duplex for dimming both connected loads. Projecting nubs prevent standard plugs from being used. Requires replacement plug for dimming table and floor lamps. Tamper resistant shutter mechanism.

Main Features

• Features on receptacle(s) for dimming use reject standard plugs
• Uses standard switched receptacle wiring (HDTR requires two separate live/hot feeds)
• Permanently installed internal tamper resistant shutter mechanism capable of resisting insertion of foreign elements into the device
• Specification grade construction
• Back wire installation capable
• Receptacle face compatible with NEMA designer and Nova T opening wallplates
• Plug may be used with standard receptacles and with new receptacles designed for dimming use
• Plug is compatible with 18 AWG (0.75 mm2) SPT-2 lamp cords
• Plug uses split-shell design for easy wiring and the ability to control cord exit direction
