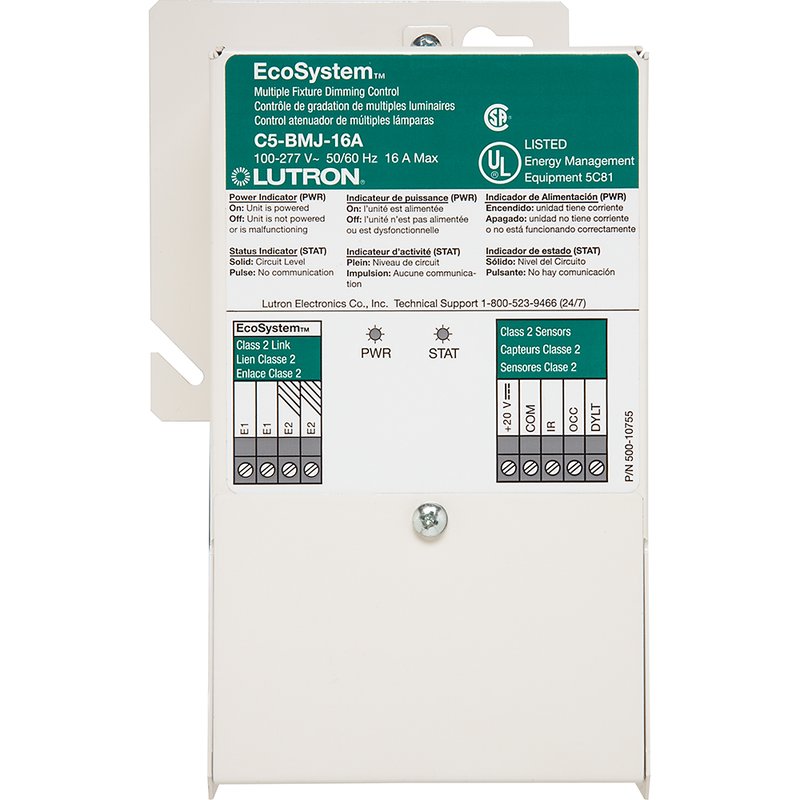

Lutron C5-BMJ-16A EcoSystem Dimming Power Module for 3-Wire Lutron Dimming Ballasts, 16A, 100-277V
The Lutron EcoSystem dimming power module allows integration of Lutron 3-wire phase controlled dimming ballasts and drivers into Lutron EcoSystem bus supplies. The power module combines digital commands and sensor data to determine the proper light level.
Main Features
- Continuous, flicker-free dimming from 100% to minimum ballast level (10% for Eco-10, 5% for Compact SE, 1% for Hi-lume)
- Provides 20 V- power for and responds to one occupancy sensor, one EcoSystem daylight sensor, and one EcoSystem personal control input
- Universal voltage input 100-277 V~ 50/60 Hz
- Non-volatile (EEPROM) memory stores specific system information for 10 years
- Switched Output Rating 16 A Softswitch load
- Control Output Rating 500 mA for use with Lutron 3-wire ballasts or Lutron interface device
- Works with the PHPM power interface
- 100% performance tested at factory
- Communicates status and sensor levels over the EcoSystem bus supply
- Complies with requirements for use in other spaces used for environmental air (plenums) per NEC 2014 300.22(C)(3)
