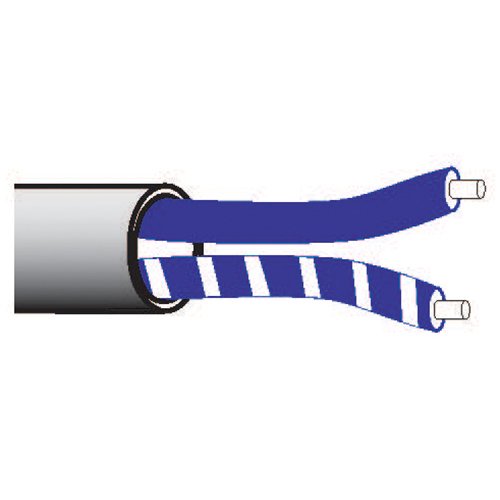

Lutron C-PCBL-216-CL-1 EcoSystem Two Conductor Link Cable, 16AWG Solid Copper, Plenum Rated

Lutron C-PCBL-216-CL-1 EcoSystem Two Conductor Link Cable, 16AWG Solid Copper, Plenum Rated

Plenum rated digital link cable, CL3R for Class 2 applications. Internal conductors match EcoSystem device terminal and lead color scheme. Each conductor sized for direct connection to EcoSystem ballast and module terminals. Available in 1000' (304m) +/- 10 percent spool. Rated to a maximum of 300V.

Main Features

• Internal conductors match EcoSystem device terminal and lead color scheme.
• Each conductor sized for direct connection to EcoSystem ballast and module terminals.
• Three types of EcoSystem bus cable: Non-plenum bus cable (CL3R), for Class 2 applications -Non-plenum bus cable (TC), for Class 1 applications - Plenum bus cable (CL3P) for plenum Class 2 applications
• All plenum cable is rated to a maximum of 300V.
• Each offering is spooled to 1000 ft (305 m) and based upon industry standards of +/- 10% on all shipments.
