BLCSupport
EMCCE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 8 OSDs
P/NSupport
ROISupport
S/N>56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.6 | F1.5 to F3.8
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE+ (IEEE 802.3at)
TitleLanguage | Type | Download
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyCE LVD (EN 62368-1: 2014+A11: 2017) UL (UL 62368-1, 2nd Ed , Issue Date: 2014-12-01)
Sensor1/2.7" CMOS
U-codeSupport
Weight2.27 kg (5.00 lb.)
ChannelChannel 1 (Panorama) | Channel 2 (Detail)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s

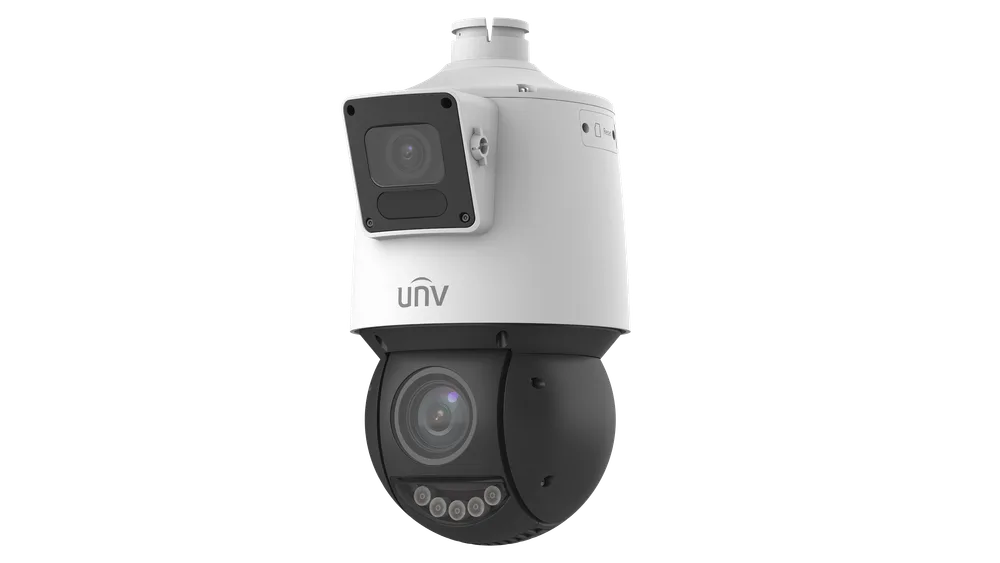

HD Image2026/9/18 2:05:39 | IPC94144SR-X25-F40C_HD_Image_4.png | png | Download
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
Smart IRSupport
Alarm I/O2/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/6/23 10:54:06 | UNV IPC94144SR-X25-F40C 4MP+4MP LightHunter Dual-lens Network PTZ Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan RangeN/A | 360°
Pan SpeedN/A | 0.1°/s to 80°/s
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

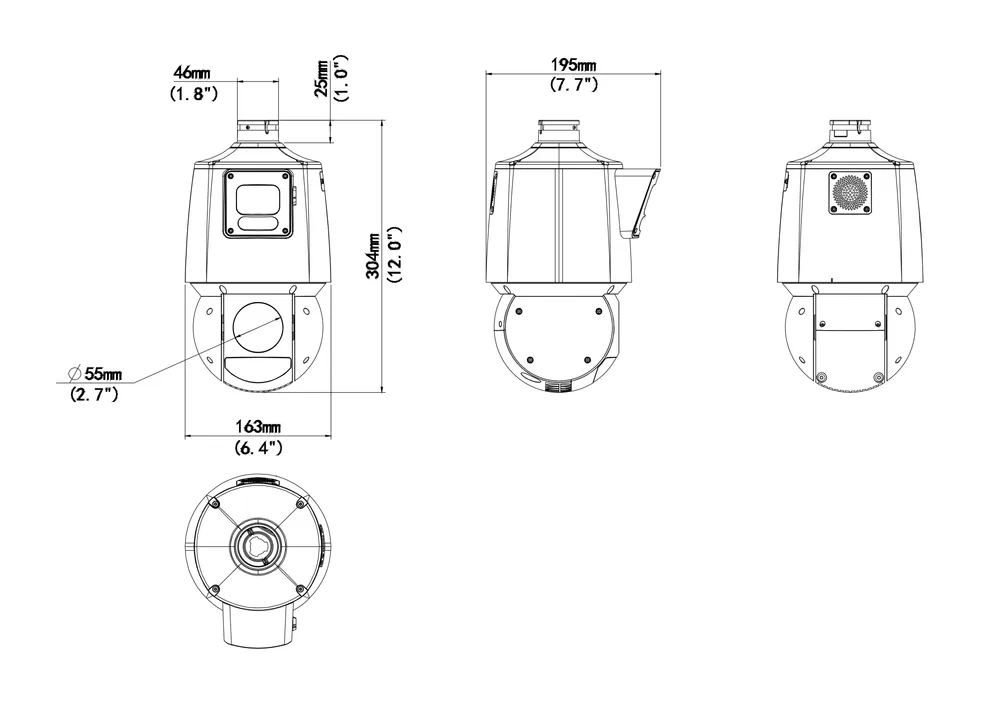

Dimensions2026/9/18 2:05:39 | IPC94144SR-X25-F40C_Dimensions_1.png | Download
Frame RateMain Stream: 4 MP (2688 × 1520), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps | Main Stream: 4 MP (2688 × 1520), max. 30 fps; Sub Stream: 1080P (1920 × 1080), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
ProtectionIP66 (IEC 60529 : 1989+AMD1: 1999+AMD2: 2013)
Tilt Range18°±5° | -15° to 90°
Tilt SpeedN/A | 0.1°/s to 80°/s
Wavelength850 nm
EnvironmentCE-RoHS (2011/65/EU; (EU) 2015/863)
Quick Guide2026/6/24 16:02:58 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1 × RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicN/A
Edge StorageMicroSD, up to 512 GB
Focal Length4.0 mm | 4.8 to 120 mm
Privacy MaskUp to 4 areas | 24 areas, up to 4 areas per scene
Reset ButtonSupport
Route PatrolN/A | 16 patrols, up to 32 actions for each patrol
Video OutputN/A
Video StreamTriple streams
Audio Bitrate128 Kbps
Home PositionN/A | Support
Preset PatrolN/A | 16 patrols, up to 64 presets for each patrol
Sampling Rate16 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Audio detection, Tampering alarm
Network StorageANR
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Recorded PatrolN/A | 16 patrols, up to 128 actions for each patrol
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output
Linkage FunctionSupport. Triggered by fixed lens via smart intrusion prevention function to track target | N/A
Patrol Stay Time15 s to 1800 s
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)112.3° | 68.22° to 3.65°
Field of View (H)91.3° | 55.46° to 3.09°
Field of View (V)46.7° | 32.94° to 1.73°
Min. IlluminationColor: 0.0005 Lux (F1.0, AGC ON), 0 lux with IR | Color: 0.003 Lux (F1.5, AGC ON), 0 lux with IR
Number of PresetsN/A | 1024
Power ConsumptionMax. 24 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Heatwave ReductionSupport
Supplemental LightIR
Exception DetectionObject Left Behind, Object removed, Scene change | Object Left Behind, Object removed
Preset Image FreezeN/A
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
Light On/Off ControlAuto/Manual
Frame Rate-Sub Stream720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps | 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)90.0 m (295.3 ft.) | 123.8 m to 2475.0 m (406.0 ft. to 8120.1 ft.)
Frame Rate-Main Stream4 MP (2688 × 1520)@25 fps (Default) 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps;
DORI Distance (Observe)36.0 m (118.1 ft.) | 49.5 m to 990.0 m (162.4 ft. to 3248.0 ft.)
Digital Noise Reduction2D/3D DNR
Frame Rate-Third StreamD1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288) , max. 30 fps; CIF (352 × 288) , max. 30 fps
Number of Presets (IPC)N/A | 1024
DORI Distance (Identify)9.0 m (29.5 ft.) | 12.4 m to 247.5 m (40.6 ft. to 812.0 ft.)
DORI Distance (Recognize)18.0 m (59.1 ft.) | 24.8 m to 495.0 m (81.4 ft. to 1624.0 ft.)
Frame Rate Recommendation2688 × 1520@30 fps + 720P@30 fps + D1@16 fps 2688 × 1520@30 fps + 720P@25 fps + D1@30 fps 2688 × 1520@25 fps + 720P@25 fps + D1@25 fps 2560 × 1440@30 fps + 720P@30 fps + D1@30 fps 2560 × 1440@30 fps + 720P@25 fps + D1@30 fps 2560 × 1440@25 fps + 720P@25 fps + D1@25 fps 1080P@30 fps + 720P@30 fps + D1@30 fps 1080P@25 fps + 720P@25 fps + D1@25 fps | 2688 × 1520@30 fps + 1080P@30 fps + D1@16 fps 2688 × 1520@30 fps + 1080P@25 fps + D1@30 fps 2688 × 1520@25 fps + 1080P@25 fps + D1@25 fps 2560 × 1440@30 fps + 1080P@30 fps + D1@30 fps 2560 × 1440@30 fps + 1080P@25 fps + D1@30 fps 2560 × 1440@25 fps + 1080P@25 fps + D1@25 fps 1080P@30 fps + 1080P@30 fps + D1@30 fps 1080P@25 fps + 1080P@25 fps + D1@25 fps
Illumination Distance (IR)30 m (98.4 ft.) | 100 m (328.1 ft.)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
QIPC-B2202.12.32.260309.zipEnglish | zip | Download
UMD (Ultra Motion Detection)Support
