BLCSupport
EMCCE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 4 OSDs
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.6
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V, PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyCE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.8" CMOS
U-codeSupport (main stream)
Weight1.03 kg (2.27 lb.)
ChannelChannel 1 (Panorama) | Channel 2 (Detail)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:39 | IPC9312LFW-AF28-2X4_HD_Image_3.png | png | Download
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Datasheet2026/6/23 7:30:42 | UNV IPC9312LFW-AF28-2X4 2MP + 2MP LightHunter Dual-lens Network PTZ Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan RangeN/A | 0° to 345°
Pan SpeedN/A | 1°/s to 40°/s
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

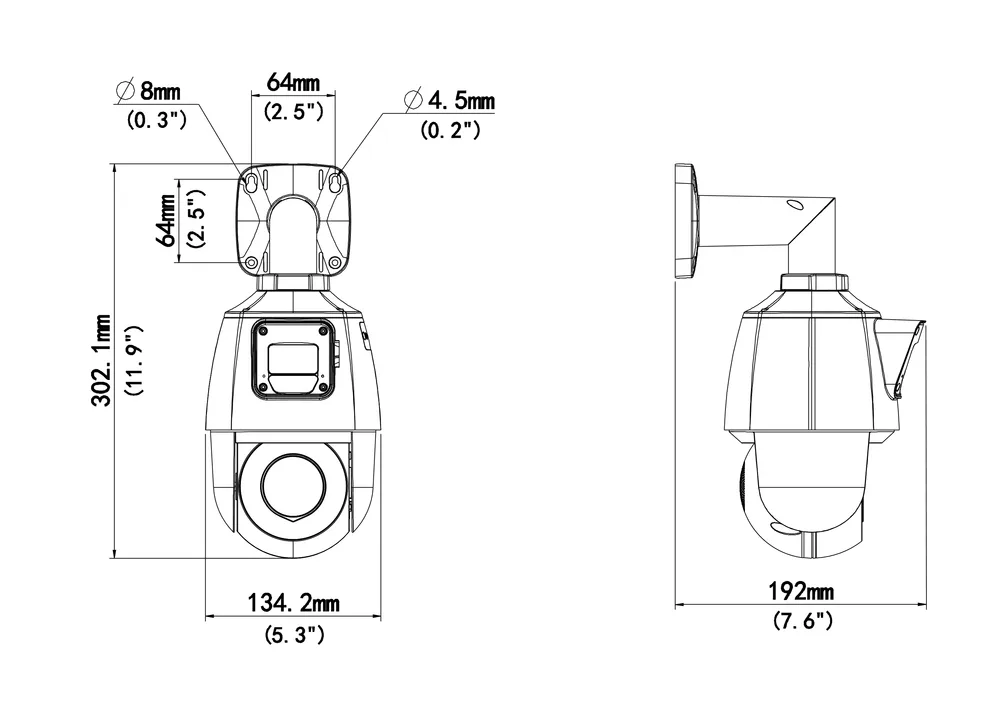

Dimensions2026/9/18 2:05:39 | IPC9312LFW-AF28-2X4_Dimensions_1.png | Download
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Tilt Range18°±5° | -10° to 100°
Tilt SpeedN/A | 2°/s to 50°/s
Wavelength850 nm
EnvironmentCE-ROHS (2011/65/EU)
Quick Guide2026/6/24 15:59:58 | Quick Guide.pdf | English | pdf | Preview | Download
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicBuilt-in dual-mic
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 mm | 2.8 to 12 mm
Optical ZoomN/A | 4X
Privacy Mask24 areas, up to 4 areas per scene
Reset ButtonSupport
Video StreamDual streams
Audio Bitrate128 Kbps
Home PositionN/A | Support
Preset PatrolN/A | 16 patrols, up to 64 presets for each patrol
Sampling Rate16KHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Linkage FunctionSupport. Triggered by fixed lens via smart intrusion prevention function to track target
Patrol Stay Time1000 s to 1800 s
Surge Protection2 KV
Audio CompressionG.711U, G.711A
Field of View (D)133.1° | 138.6° to 37.6°
Field of View (H)102.4° | 106.6° to 30.6°
Field of View (V)54.9° | 56.5° to 17.4°
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 lux with IR | Color: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR/Warm light
Number of PresetsN/A | 256
Power ConsumptionMax. 16 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Storage Environment-30 ℃ to 70 ℃ (-22 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Light On/Off ControlAuto/Manual
Frame Rate-Sub Stream720P (1280 × 720), max. 25 fps D1 (720 × 576), max. 25 fps 640 × 360, max. 25 fps 2CIF (704 × 288), max. 25 fps CIF (325 × 288), max. 25 fps
Compatible IntegrationONVIF (Profile S, Profile G, Profile M), API, SDK
DORI Distance (Detect)43.4 m (142.4 ft.) | 43.4 m to 162.9 m (142.4 ft. to 534.5 ft.)
Frame Rate-Main Stream1080P (1920 × 1080)@25 fps (default) 1080P (1920 × 1080), max. 25 fps 720P (1280 × 720), max. 25 fps
DORI Distance (Observe)17.4 m (57.1 ft.) | 17.4 m to 65.2 m (57.1 ft. to 213.9 ft.)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)4.3 m (14.1 ft.) | 4.3 m to 16.3 m (14.1 ft. to 53.5 ft.)
DORI Distance (Recognize)8.7 m (28.5 ft.) | 8.7 m to 32.6 m (28.5 ft. to 106.9 ft.)
Illumination Distance (IR)10 m (32.8 ft.) | 50 m (164.0 ft.)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | N/A
Illumination Distance (Warm Light)N/A | 10 m (32.8 ft.)
