BLCSupport
EMCCE-EMC (EN 55032: 2015+A11:2020+A1：2020,EN IEC 61000-3-2: 2019+A1: 2021,EN 61000-3-3: 2013+A1: 2019+A2:2021,EN 50130-4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 4 OSDs
P/NSupport
ROISupport
S/N>56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.78-F3.73
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±10%, 3A), PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyCE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.9" CMOS
U-codeSupport
Weight2.3 kg (5.07 lb.)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/7 10:13:33 | IPC6434LR-X16-VG1_HD_Image_3.png | png | Download
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O2/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/6/22 16:34:27 | UNV IPC6434LR-X16-VG1 4MP 16X LightHunter Network PTZ Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range360° (endless)
Pan Speed0.1°/s to 240°/s
ProtocolsIPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

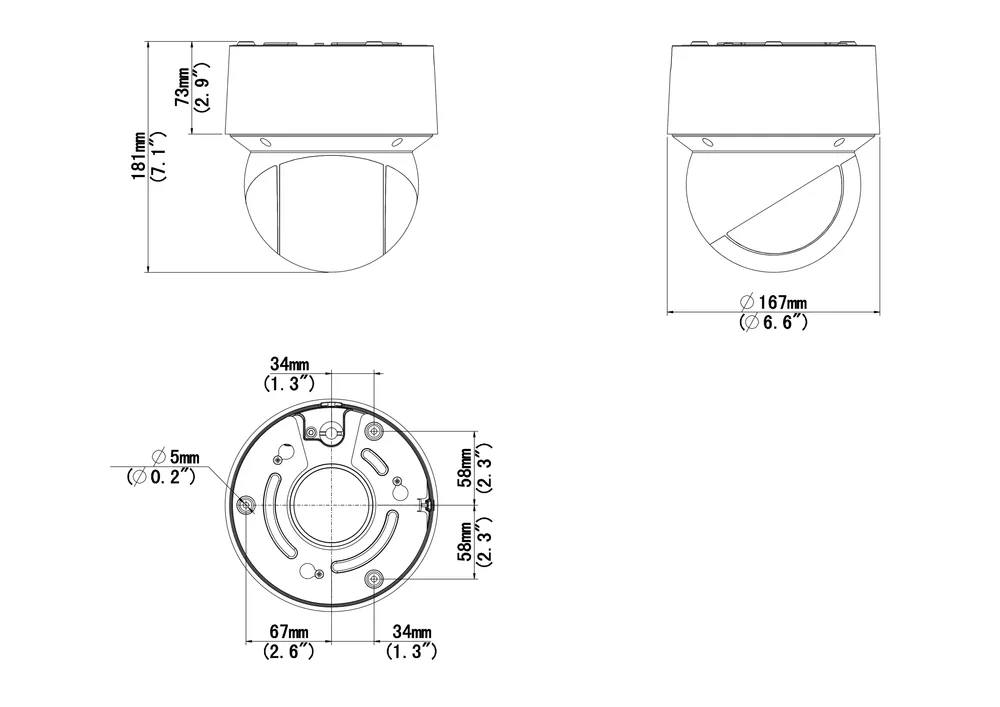

Dimensions2026/9/7 10:13:33 | IPC6434LR-X16-VG1_Dimensions_1.png | Download
Frame RateMain Stream: 4 MP (2688 × 1520), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Tilt Range-5° to 90° (auto flip)
Tilt Speed0.1°/s to 120°/s
Wavelength850 nm
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
Quick Guide2026/6/24 16:21:20 | Quick Guide.pdf | English | pdf | Preview | Download
Serial Port1*RS485
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Edge StorageMicroSD, up to 512 GB
Focal Length5.5 to 88 mm
Optical Zoom16X
Privacy Mask24 areas, up to 4 areas per scene
Reset ButtonSupport
Route Patrol16 patrols, up to 32 actions for each patrol
Video StreamDual streams
Audio Bitrate128 Kbps
Auto TrackingSupport, target filtering: human and vehicle
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution4 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection
Network StorageANR, NAS (NFS)
Power InterfaceØ5.5 mm coaxial power plug
Recorded Patrol16 patrols, up to 128 actions for each patrol
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input
Patrol Stay Time15 s to 1800 s
Surge Protection6 KV
Audio CompressionG.711U, G.711A
Field of View (D)62.55° to 4.09°
Field of View (H)50.85° to 3.47°
Field of View (V)29.94° to 1.95°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.005 Lux (F1.78, AGC ON), 0 Lux with IR
Number of Presets1024
Power ConsumptionMax. 23 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Storage Environment-40℃~70℃ (-40°F~158°F), Humidity: ≤95% RH (non-condensing)
Working Environment-40℃~65℃ (-40°F~149°F), Humidity: ≤95% RH (non-condensing)
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API
DORI Distance (Detect)127.6 m to 2048.4 m (418.6 ft. to 6720.5 ft.)
DORI Distance (Observe)51.0 m to 819.4 m (167.4 ft. to 2688.2 ft.)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)12.8 m to 204.8 m (41.9 ft. to 672.0 ft.)
DORI Distance (Recognize)25.5 m to 409.7 m (83.7 ft. to 1344.1 ft.)
Illumination Distance (IR)Up to 100m (328 ft) IR range
Smart Intrusion PreventionCross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle)
