BLCSupport
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 8 OSDs
P/NSupport
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.7 to F2.8
WIFIN/A
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%,3 A), PoE+ (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
HeaterSupport
SafetyCE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.8" CMOS
U-codeSupport
Weight1.79 kg (3.95 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 ~ 1/100000s
HD Image2026/9/7 12:27:17 | IPC6412LR-X16-VG_HD_Image_3.png | png | Download
SecurityTLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/ON/A
Audio I/ON/A
Datasheet2026/6/23 14:18:52 | UNV IPC6412LR-X16-VG 2MP 16X LightHunter Network PTZ Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range360° (endless)
Pan Speed-15° to 90° (auto reverse)
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

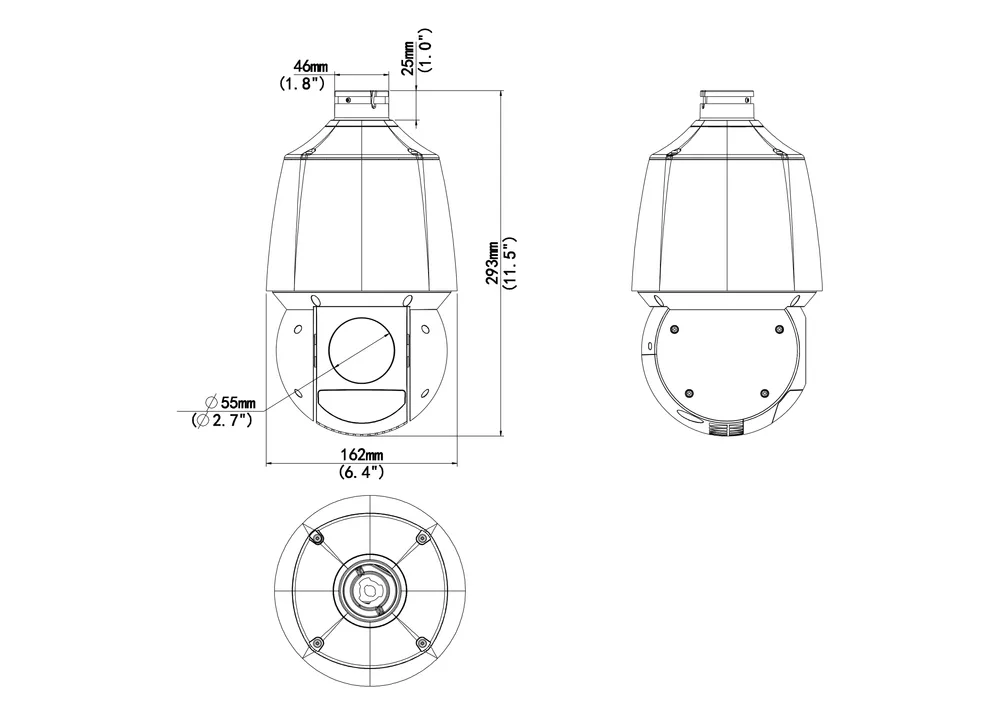

Dimensions2026/9/7 12:27:17 | IPC6412LR-X16-VG_Dimensions_1.png | Download
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Tilt Range0.1°/s to 80°/s
Tilt Speed0.1°/s to 80°/s
Wavelength850 nm
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
Quick Guide2026/6/24 16:02:58 | Quick Guide.pdf | English | pdf | Preview | Download
Serial PortN/A
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicN/A
Edge StorageMicroSD, up to 512 GB
Focal Length5 to 80 mm
Optical Zoom16X
Privacy Mask24 areas, up to 4 areas per scene
Reset ButtonSupport
Route Patrol16 patrols, up to 32 actions for each patrol
Video OutputN/A
Video StreamTriple streams
Auto TrackingSupport, target filtering: human, non-motor vehicle and vehicle
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Object removed, Object Left Behind
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Recorded Patrol16 patrols, up to 128 actions for each patrol
Built-in SpeakerN/A
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Patrol Stay Time15 s to 1800 s
Surge Protection6 KV
Field of View (D)63.59° to 5.77°
Field of View (H)51.70° to 4.89°
Field of View (V)30.49° to 2.75°
IR On/Off ControlAuto/Manual
Min. IlluminationColor: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR
Number of Presets1024
Power ConsumptionMax. 20 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Heatwave ReductionSupport
Exception DetectionObject removed, Object Left Behind
Preset Image FreezeN/A
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-40 ℃ to 65 ℃ (-40 ℉ to 149 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)5 to 80 mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)77.6 m to 1241.4 m (254.5 ft. to 4072.8 ft)
Multi-target DetectionN/A
DORI Distance (Observe)31.0 m to 496.6 m (101.8 ft. to 1629.1 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)7.8 m to 124.1 m (25.5 ft. to 407.3 ft)
DORI Distance (Recognize)15.5 m to 248.3 m (50.9 ft. to 814.6 ft)
Illumination Distance (IR)100 m (328.1 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
