BLCSupport
EMCCE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021)
HLCSupport
OSDUp to 8 OSDs
P/NSupport
ROISupport
S/N>56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.2
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE (IEEE 802.3at)
ClientEZStation, UNV-Link, UNV-Link Pro
HeaterSupport
SafetyCE LVD (EN 62368-1: 2020+A11: 2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.7" CMOS
U-codeSupport
Weight1.32 kg (2.91 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:38 | IPC6325LFW-AX5C-VG_HD_Image_3.png | png | Download
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IRSupport
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/9/17 15:33:58 | UNV IPC6325LFW-AX5C-VG 5MP LightHunter Active Deterrence Mini PTZ Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range0° to 345°
Pan Speed1°/s to 50°/s
ProtocolsTLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

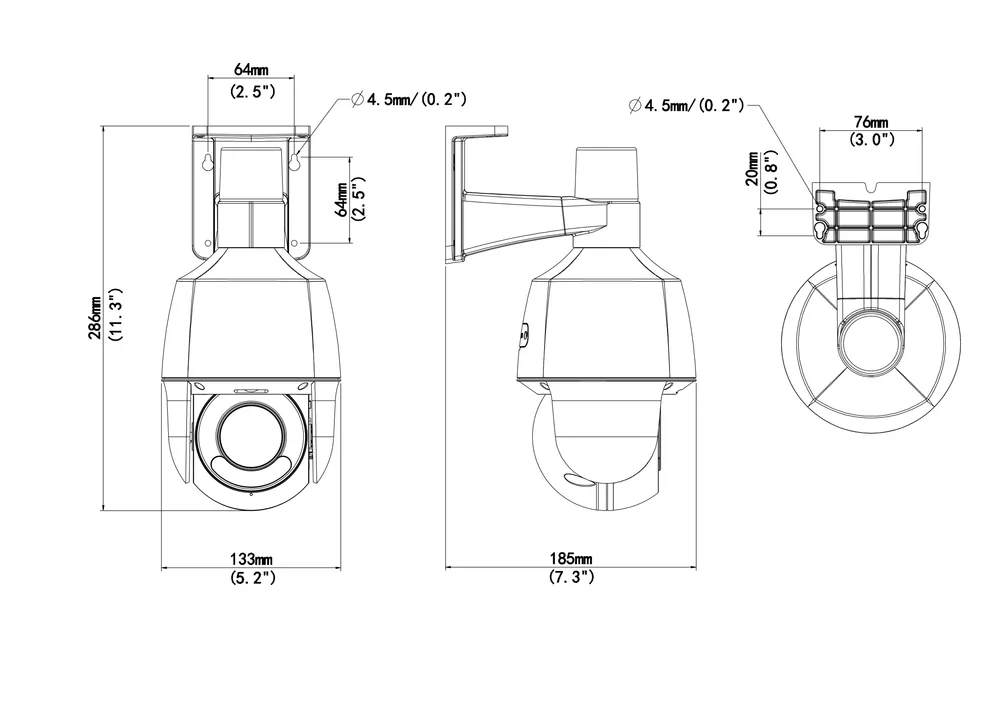

Dimensions2026/9/18 2:05:38 | IPC6325LFW-AX5C-VG_Dimensions_1.png | Download
Frame RateMain Stream: 5 MP (2880 × 1620), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Tilt Range-10° to 100°
Tilt Speed1°/s to 40°/s
Wavelength850 nm
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
Quick Guide2026/6/24 16:25:42 | Quick Guide.pdf | English | pdf | Preview | Download
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video StreamTriple streams
Audio Bitrate128 Kbps
Auto TrackingSupport, target filtering: human only
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution5 MP
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Patrol Stay Time120 s to 1800 s
Surge Protection2 KV
Audio CompressionG.711U, G.711A
Field of View (D)131.5° to 36.1°
Field of View (H)106.9° to 30.6°
Field of View (V)56° to 17.7°
Min. IlluminationColor: 0.005 Lux (F1.2, AGC ON), 0 Lux with IR
Number of Presets1024
Power Consumption19.3 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Exception DetectionObject removed, Object Left Behind, Scene change, Defocus detection
Storage Environment-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Light On/Off ControlAuto/Manual
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect)70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
DORI Distance (Observe)28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)7.1 m to 24.8 m (23.3 ft. to 81.4 ft)
DORI Distance (Recognize)14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
Illumination Distance (IR)50 m (164.0 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Illumination Distance (Warm Light)15 m (49.2 ft)
