BLCSupport
EMCCE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B)
HLCSupport
OSDUp to 8 OSDs
ROISupport
S/N>56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V±25%, PoE (IEEE 802.3at)
ClientEZStation, EZLive, EZView
HeaterSupport
SafetyUL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1)
Sensor1/1.8" CMOS
U-codeSupport
Weight0.84 kg (1.85 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/18 2:05:38 | IPC6314LWH-AX5C-VG2_HD_Image_3.png | png | Download
MaterialPlastic
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Datasheet2026/8/13 17:41:46 | UNV IPC6314LWH-AX5C-VG2 4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
OSD ColorSupport
Pan Range0° to 345°
Pan Speed1°/s to 50°/s
ProtocolsTLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

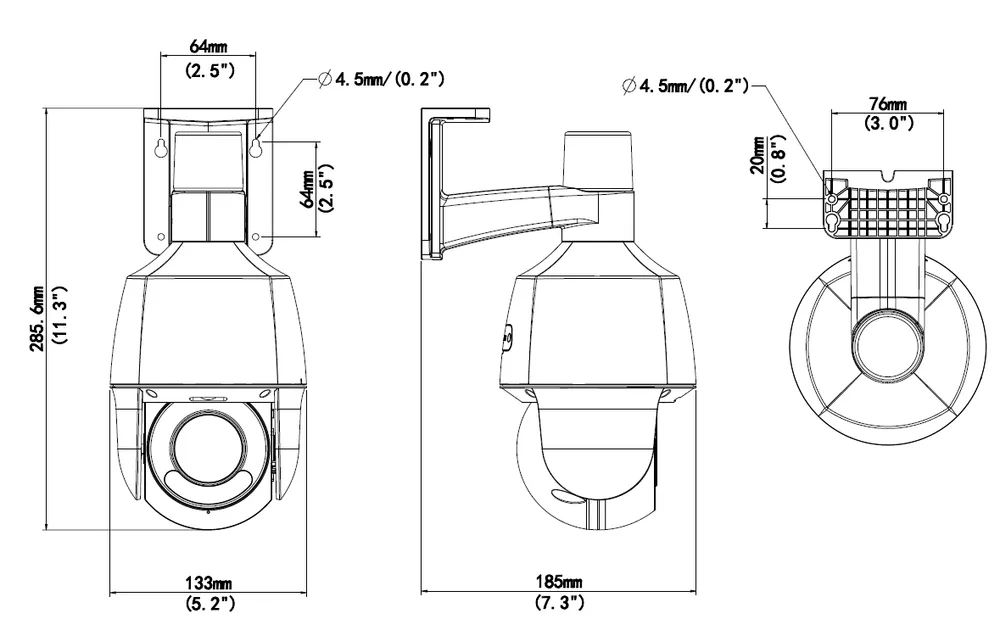

Dimensions2026/9/18 2:05:38 | IPC6314LWH-AX5C-VG2_Dimensions_1.png | Download
ProtectionIP66 (IEC 60529)
Tilt Range-10° to 100°
Tilt Speed1°/s to 40°/s
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
Quick Guide2026/6/24 16:25:42 | Quick Guide.pdf | English | pdf | Preview | Download
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video StreamTriple streams
Audio Bitrate128 Kbps
Auto TrackingSupport, target filtering: human only
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling Rate8 kHz, 16 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Video Bit Rate128 Kbps to 6144 Kbps
Audio DetectionSupport
Basic DetectionMotion detection, Audio detection, Tampering alarm
Network StorageANR, NAS (NFS)
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Motion DetectionSupport
Number of Patrol16
Patrol Stay Time120 s to 1800 s
Surge Protection2 KV
Audio CompressionG.711U, G.711A
Field of View (D)134.2° to 59.2°
Field of View (H)103.25° to 50.14°
Field of View (V)54.67° to 27.86°
Maximum Bitstream35
Min. IlluminationColor: 0.0005 Lux (F1.2, AGC ON)
Number of Presets1024
Power Consumption≤ 25.4 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Tampering DetectionSupport
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.7 to 13.5 mm
Light On/Off ControlAuto/Manual
OSD Character Number40
Compatible IntegrationONVIF (Profile S,Profile G,Profile T), API
DORI Distance (Detect)41.9 m to 209.5 m (137.5 ft. to 687.3 ft)
Frame Rate-Main Stream4 MP (2560 × 1440)@25 fps (Default) 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps
DORI Distance (Observe)16.8 m to 83.8 m (55.0 ft. to 274.9 ft)
Digital Noise Reduction2D/3D DNR
Number of Presets (IPC)1024
DORI Distance (Identify)4.2 m to 20.9 m (13.7 ft. to 68.7 ft)
DORI Distance (Recognize)8.4 m to 41.9 m (27.5 ft. to 137.5 ft)
Smart Intrusion PreventionSupport false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection)
UMD (Ultra Motion Detection)Support
Illumination Distance (Warm Light)40 m
