BLCSupport
EMCCE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
HLCSupport
OSDUp to 8 OSDs
ROISupport
S/N>52 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.6
ClassDate | Title | Download
DefogDigital defog
PowerDC 12 V (±25%), PoE (IEEE 802.3af)
TitleLanguage | Type | Download
ClientEZStation, UNV-Link, UNV-Link Pro
SafetyCE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Sensor1/2.7" CMOS
Weight0.87 kg (1.92 lb)
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/8/24 10:26:59 | IPC6312LFW-AX4C-VG_HD_Image_4.png | png | Download
Smart IRSupport
Datasheet2026/6/23 6:04:50 | UNV IPC6312LFW-AX4C-VG 2MP LightHunter Active Deterrence PTZ Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range0° to 345°
Pan Speed1°/s to 50°/s
ProtocolsSSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS

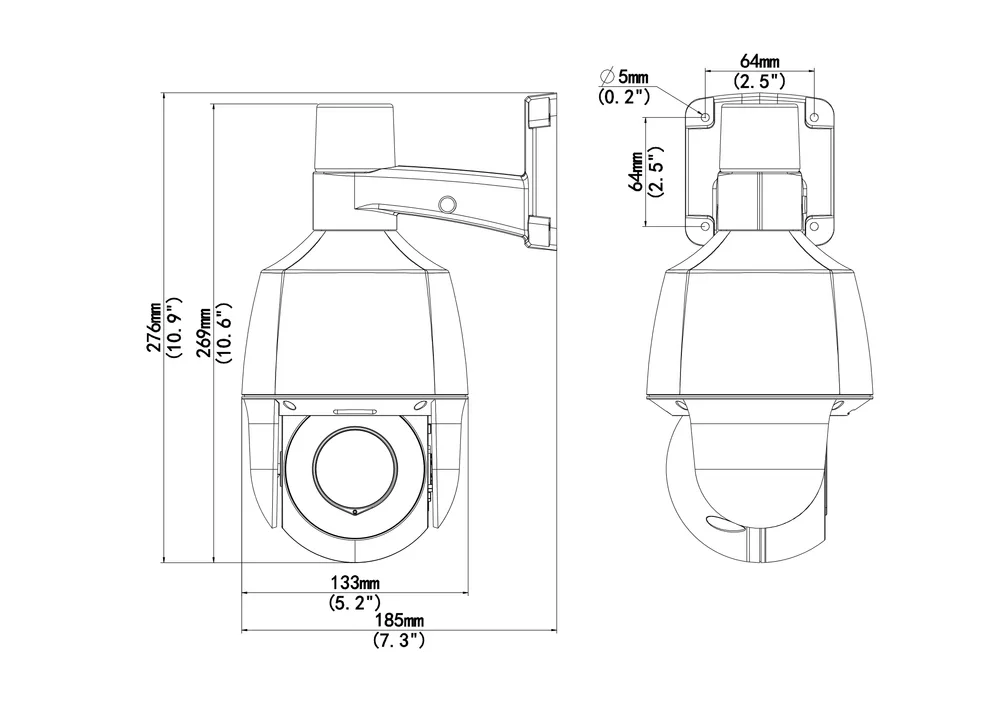

Dimensions2026/8/24 10:26:59 | IPC6312LFW-AX4C-VG_Dimensions_1.png | Download
Frame RateMain Stream: 1080P (1920 × 1080), max. 30 fps Sub Stream: 720P (1280 × 720), max. 30 fps Third Stream: D1 (720 × 576), max. 30 fps
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
Tilt Range-10° to 110°
Tilt Speed1°/s to 40°/s
Wavelength850 nm
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
Quick Guide2026/6/24 15:47:48 | Quick Guide.pdf | English | pdf | Preview | Download
SuppressionSupport
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Built-in MicSupport
Edge StorageMicroSD, up to 512 GB
Focal Length2.8 to 12 mm
Optical Zoom4X
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video StreamTriple streams
Auto TrackingSupport, target filtering: human only
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling Rate16KHZ
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Video Bit Rate128 Kbps to 16 Mbps
Basic DetectionMotion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
Network StorageANR, NAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Patrol Stay Time120 s to 1800 s
Surge Protection2 KV
Audio CompressionG.711U, G.711A
Field of View (D)108.7° to 33.3°
Field of View (H)105.2° to 29.32°
Field of View (V)52.6° to 16.38°
Min. IlluminationColor: 0.002 Lux (F1.6, AGC ON), 0 Lux with IR on
Number of Presets256
Power ConsumptionMax. 15 W
Video CompressionUltra 265, H.265, H.264, MJPEG
Heatwave ReductionN/A
Exception DetectionObject removed, Object Left Behind, Scene change, Defocus detection
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens)2.8 to 12 mm
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API, SDK
DORI Distance (Detect)43.4 m to 186.2 m (142.4 ft. to 610.9 ft)
DORI Distance (Observe)17.4 m to 74.5 m (57.1 ft. to 244.4 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)4.3 m to 18.6 m (14.1 ft. to 61.0 ft)
DORI Distance (Recognize)8.7 m to 37.2 m (28.5 ft. to 122.1 ft)
GIPC-B6202.17.7.250508.zipEnglish | zip | Download
Illumination Distance (IR)50 m (164.0 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
GIPC-B6202.15.11.240529.zipEnglish | zip | Download
Illumination Distance (Warm Light)10 m (32.8 ft)
GIPC-B6202.15.11.240529 Release Notes.pdfEnglish | pdf | Download
