BLCSupport
EMCCE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) FCC SDoC (47 CFR Part 15; Subpart B)
HLCSupport
OSDUp to 4 OSDs
P/NSupport
ROIUp to 8 areas
S/N> 56 dB
WDR120 dB
FlipNormal, Flip vertical, Flip horizontal, 180°
IrisF1.68 to F3.18
ClassDate | Title | Download
DefogN/A
PowerDC 12 V (±25%), PoE af
ClientEZStation, UniEase, UniTools Pro
SafetyUL (UL 62368-1) CUL (CAN/CSA C22.2 No. 62368-1) CE-LVD (EN IEC 62368-1)
Sensor1/2.9" CMOS
U-codeSupport
Weight0.67 kg
Network1 × RJ45 10 M/100 M Base-TX Ethernet
ShutterAuto/Manual, 1 to 1/100000 s
HD Image2026/9/7 12:18:28 | IPC6234LR-AX5C-VG3_HD_Image_3.png | png | Download
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3
Alarm I/O1/1
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Case TypePT
Datasheet2026/9/10 14:09:04 | UNV IPC6234LR-AX5C-VG3 4MP 5X Starlight IR Network Mini PTZ Dome Camera.pdf | English | pdf | Preview | Download
Day/NightIR-cut filter with auto switch (ICR)
Pan Range355°
Pan Speed0.1°/s to 55°/s
ProtocolsSSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, common user and operator

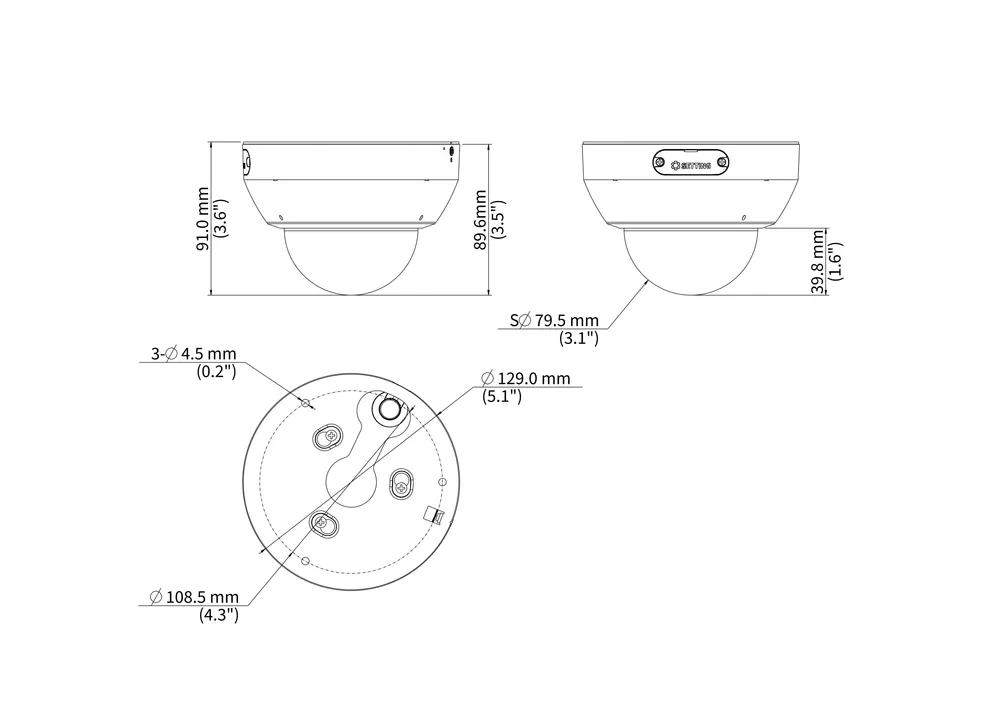

Dimensions2026/9/7 12:18:28 | IPC6234LR-AX5C-VG3_Dimensions_1.png | Download
Frame RateMain Stream Max: 4 MP (2560 × 1440), 30 fps Main Stream Default: 4 MP (2560 × 1440), 25 fps Sub Stream Max: 720 × 576, 30 fps
ProtectionIP67 (IEC 60529) ; IK10 (IEC62262)
Tilt Range10° to 90°
Tilt Speed0.1°/s to 55°/s
EnvironmentCE-ROHS (2011/65/EU; (EU) 2015/863) WEEE (2012/19/EU)
Quick Guide2026/7/3 5:16:42 | Quick Guide.pdf | English | pdf | Preview | Download
SuppressionSupport
User Manual2025/12/10 9:40:06 | UNV-Network Camera User Manual.pdf | English | pdf | Preview | Download
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-in MicBuilt-in dual-mic
Digital Zoom16X
Edge StorageMicroSD, up to 512 GB
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Privacy MaskUp to 4 areas
Reset ButtonSupport
Video StreamDual streams
Auto TrackingSupport
Home PositionSupport
Preset Patrol16 patrols, up to 64 presets for each patrol
Sampling RateG.711U/G.711A: 8 kHz, 16 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-way AudioSupport
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Max Resolution4 MP
NDAA CompliantSupport
Video Bit Rate128 Kbps to 6144 Kbps
Network StorageNAS (NFS)
People CountingSupport people flow counting and crowd density detection
Power InterfaceØ5.5 mm coaxial power plug
Built-in SpeakerSupport
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication
Patrol Stay Time200 s to 1800 s
Surge Protection4 KV
Audio CompressionG.711U, G.711A, AAC-LC
Min. IlluminationColor: 0.003 Lux (F1.68, AGC ON), 0 Lux with IR
Number of Presets1024
Video CompressionH.265, H.264, MJPEG, Ultra 265
Exception DetectionObject removed, Object Left Behind
Image StabilizationDIS
Preset Image FreezeN/A
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Built-in DC12V OutputSupport
Compatible IntegrationSDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M)
DORI Distance (Detect)75.8 m to 227.9 m (248.8 ft. to 747.8 ft)
DORI Distance (Observe)30.3 m to 91.2 m (99.4 ft. to 299.1 ft)
Digital Noise Reduction2D/3D DNR
DORI Distance (Identify)7.6 m to 22.8 m (24.9 ft. to 74.8 ft)
DORI Distance (Recognize)15.2 m to 45.6 m (49.9 ft. to 149.6 ft)
Illumination Distance (IR)20 m (65.6 ft)
Smart Intrusion PreventionCross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
Low Illumination CharacteristicsLightHunter
