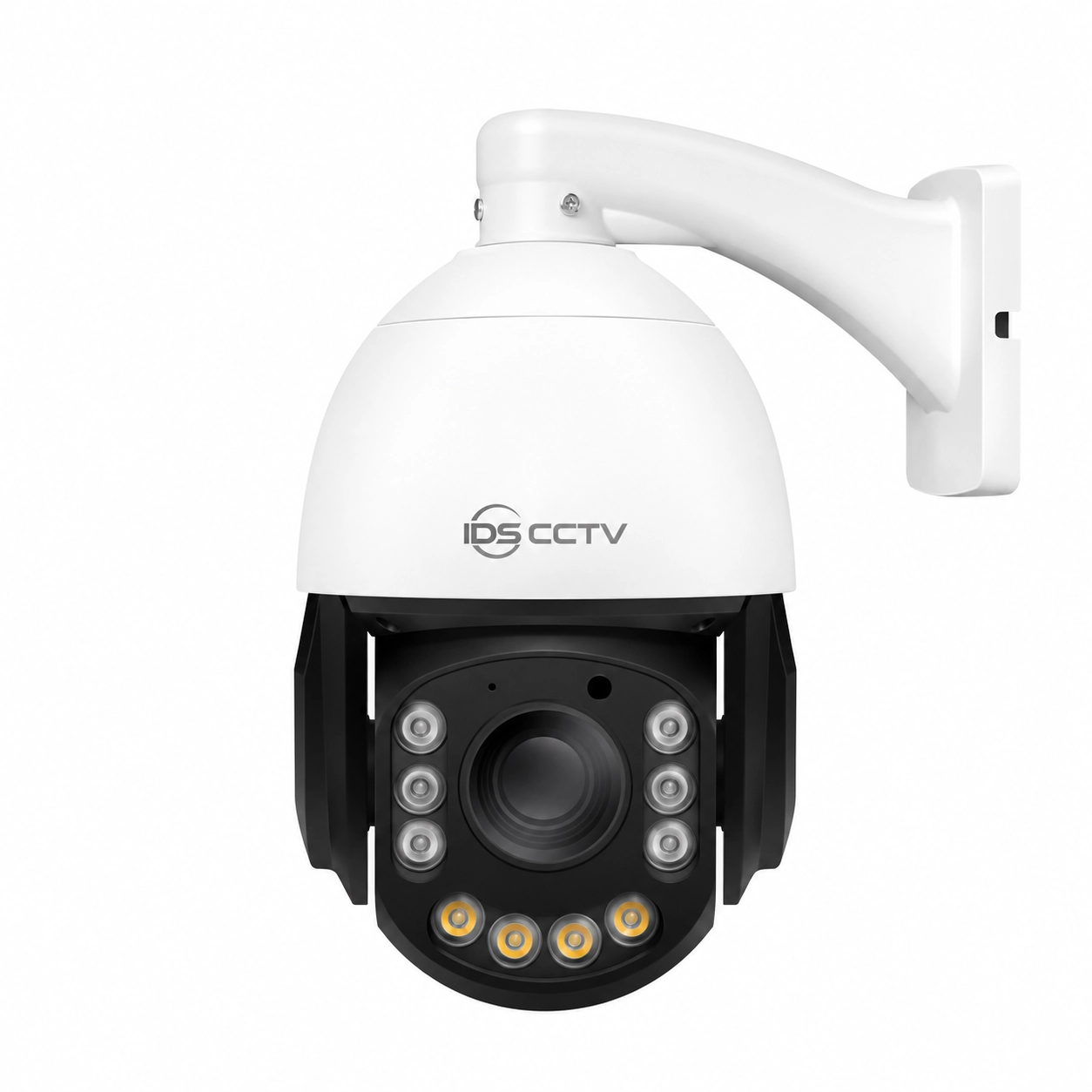

IDS-AOPTS4K-20X — 4K PTZ Camera with 20x Optical Zoom

Wholesale price: Call for pricing. The IDS-AOPTS4K-20X is a professional-grade 4K (8MP) PTZ speed dome camera with 20x optical zoom for ultra-long-range surveillance. It features smooth 360° endless pan, AI-based auto-tracking, human and vehicle detection, and perimeter protection. With IR illumination for night vision and an IP66-rated housing, it is built for large perimeters, airports, seaports, stadiums, and critical infrastructure sites.

Key Features

4K (8MP) 1/1.8" CMOS — 3840 × 2160 resolution
20x optical zoom for long-range identification
AI auto-tracking with motion prediction
360° endless pan / 90° tilt with 256 preset positions
Long-range IR illumination for night vision
IP66 weatherproof speed dome housing with wiper
H.265 / H.264 dual-stream, Smart IR
PoE+ (IEEE 802.3at) power and data

In The Box

IDS-AOPTS4K-20X PTZ speed dome camera, pendant mount bracket, hardware kit, waterproof RJ45 connector, installation guide. Compatible with IDS CCTV PoE+ switches and NVRs.

Download the full product datasheet (PDF)

Specifications

pan360° endless rotation, 0.1–200°/s

lens5.4–108 mm motorized zoom (20x optical)

tilt0–90°, 0.1–60°/s

zoom20x optical zoom, 16x digital zoom

onvifONVIF Compliant (Profiles S, G, T)

powerPoE+ IEEE 802.3at, 24 VAC, 12 VDC

sensor1/1.8" 8MP CMOS

network1 × RJ45 100Mbps, PoE+ IEEE 802.3at

storageMicroSD up to 256 GB, FTP, NAS, email

irDistanceLong-range IR up to 100 m, Smart IR

protectionIP66, IK10 vandal-resistant, −40 °C to +60 °C, integrated wiper

resolution4K / 8MP (3840 × 2160 @ 30fps)

aiDetectionHuman & Vehicle Detection, Auto-tracking, Perimeter Intrusion, Line Crossing

compressionH.265 / H.264 / MJPEG triple-stream

resetButtonYes

presetPositions256 presets, 8 tours, auto-pan
