UPC8801089241528
MSRP$2300.00
TypeBi-spectrum thermal + visible
CodecH.265/H.264/MJPEG with WiseStream II
ModelTNM-C2712TDR
PowerPoE

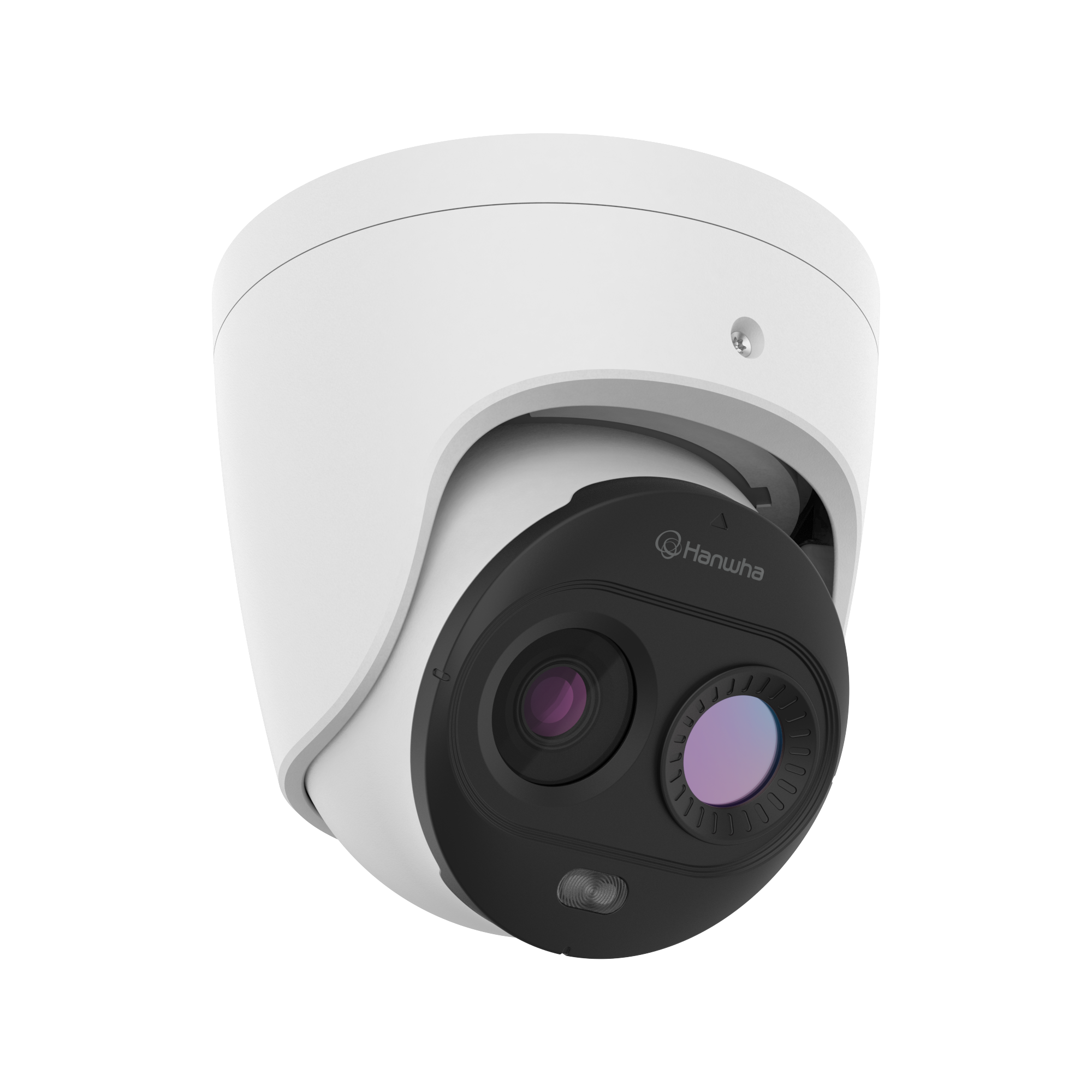

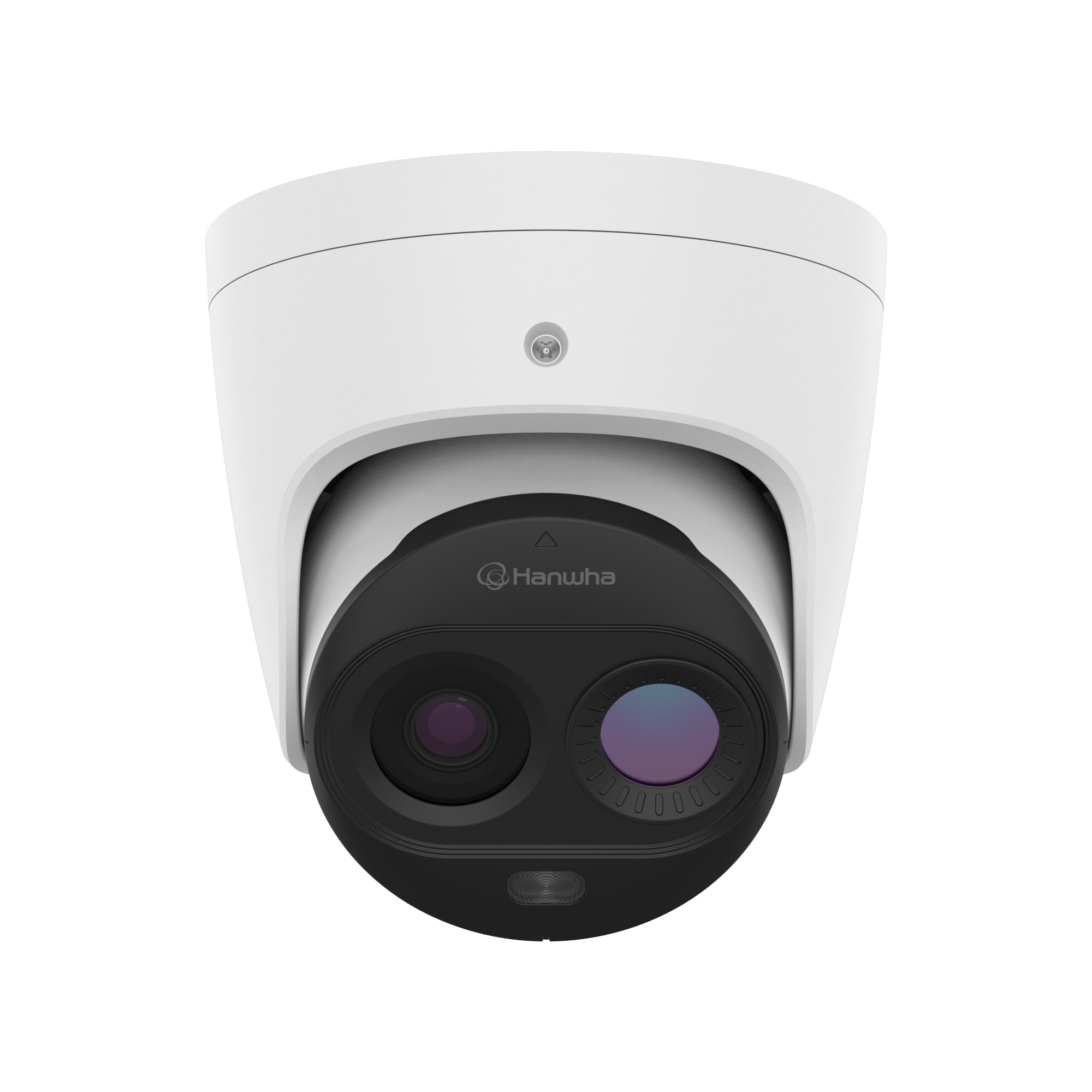

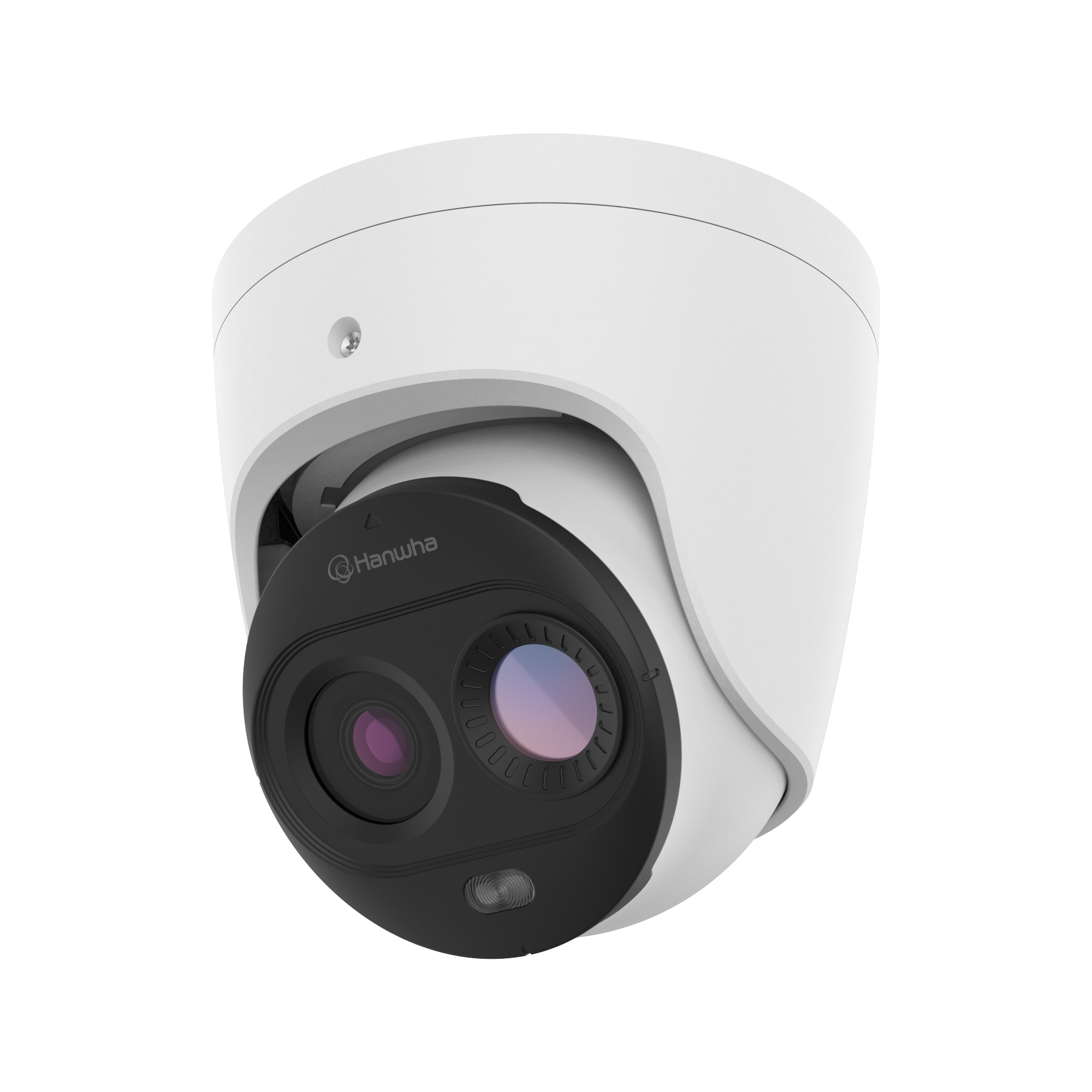

TitleBi-spectrum Early Fire Detection Camera
CategoryCamera - Network
warranty5-Year Hanwha Vision manufacturer warranty
IP RatingIP66/IP67/IK09
HighlightsWisenet T network Bi-spectrum Early Fire Detection Camera, Thermal: 160 x 120 (uncooled) @ 8fps, <50mK (NETD), built-in 1.2mm fixed lens (95° HFoV / 69° VFoV), Visible: 3MP, built-in 3.06mm fixed lens (100° HFoV / 73° VFoV), Max. 2048 x 1536 resolution @ 30fps, Triple codec H.265/H.264/MJPEG with Wisestream II support, Analytics (thermal): temperature detection, temperature difference detection, motion detection, Analytics (visible): early fire detection, motion detection, audio detection, tampering, Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset, HTTP/HTTPS/TCP message), Audio clip playback, MQTT (publication), Early fire detection: 3 user programmable quadrangle ROIs, Radiometric: 2 user programmable quadrangle ROIs, temperature detection range from -10°C to 450°C (-14°F to 842°F), micro SD card (512GB x1), PoE (802.3af)
Thermal FoVH:95°/V:69°
Visible FoVH:100°/V:73°
Thermal Lens1.2mm
Visible Lens3.06mm
Operating Temp-10°C to +50°C
Thermal Framerate8fps
Visible Framerate30fps
Thermal ResolutionQVGA (320x240)
Visible Resolution3MP
Fire Detection Range7m
Temperature Detection-10°C to +450°C
IP66IP67IK09
