Uniview

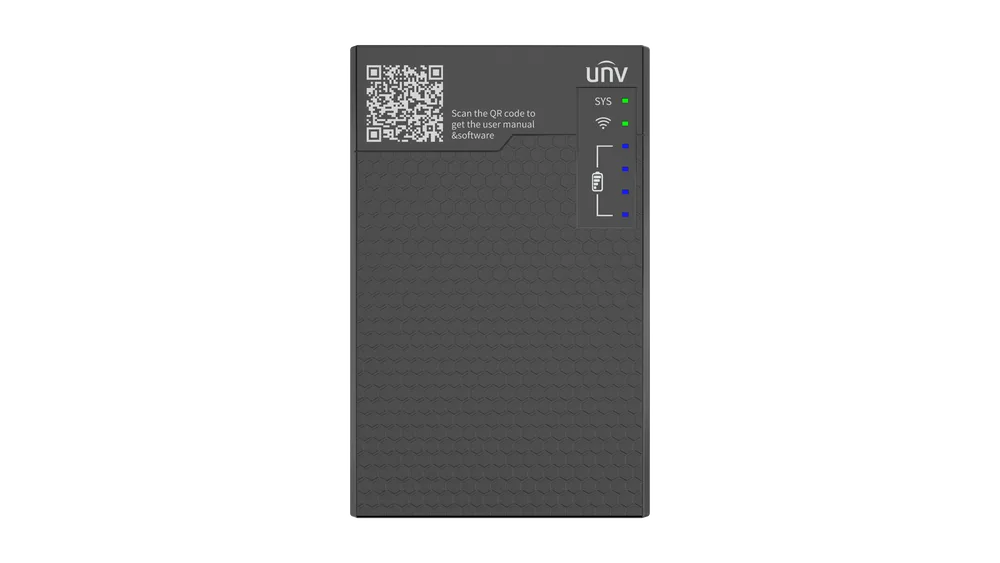

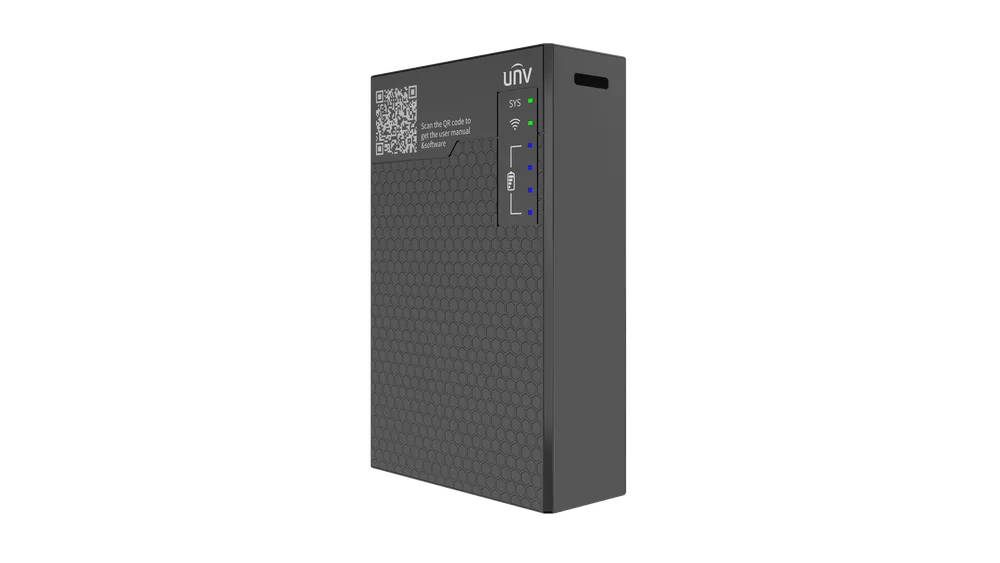

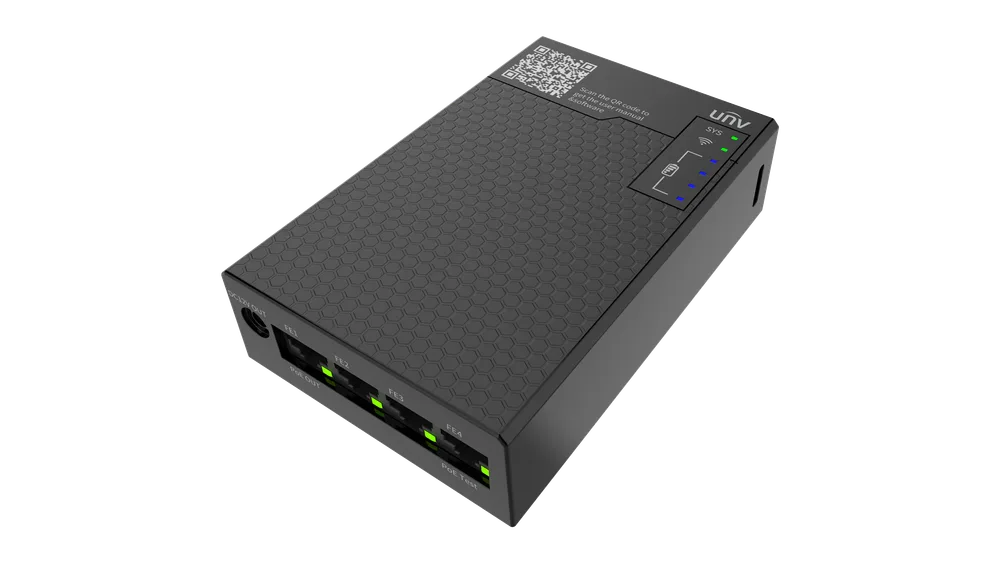

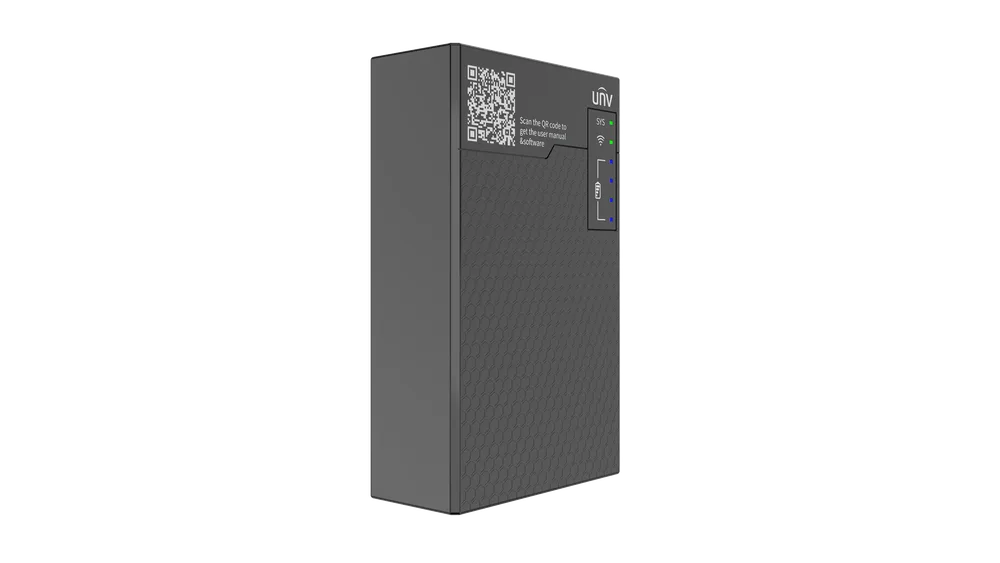

Uniview GCB01-B7 UNV-Link Pro connect Box

$359.00

In stock

SKU: GCB01-B7

Qty:

2-Year Warranty on all Uniview products

Free UPS Ground Shipping on all products

Description

GCB01-B7 UNV-Link Pro connect Box. UNV Connection Box with UNV Link Pro. A genuine Uniview (UNV) product, NDAA-compliant, backed by the manufacturer warranty. Key Specifications: • Network: 4 × RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test • Power Input: 1 × DC 5 V/2 A max, type-c • Power Output: 1 × DC 12 V/1 A output; 1 × DC 5 V/1 A output, type-A • Dimensions: 2026/9/7 15:11:04 | GCB01-B7_Dimensions_1.png | Download Model: GCB01-B7

Specifications

ClassDate | Title | Download

TitleLanguage | Type | Download

Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n)

Network4 × RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test

HD Image2026/9/7 15:11:04 | GCB01-B7_HD_Image_6.png | png | Download

Dimensions2026/9/7 15:11:04 | GCB01-B7_Dimensions_1.png | Download

Power Input1 × DC 5 V/2 A max, type-c

Power Output1 × DC 12 V/1 A output; 1 × DC 5 V/1 A output, type-A

Reset ButtonSupport

Voltage Test1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V)

LED IndicatorSystem indicator, WiFi indicator, Battery indicator

Battery Capacity18650 lithium battery, 7500 mAH

Working Environment-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

DIPC-B6102.1.68.251202.zipEnglish | zip | Download
