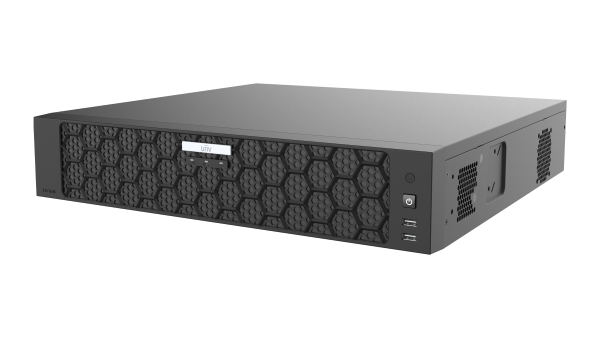

Uniview 64CH Network Video Recorder: AI Upto 12MP, 384MBPS INPUT, 8-SATA Prime Series - NVR508-64B

Description

Description UNIVIEW PRIME SERIES 64CH BLACK AI NVR UPTO 12MP ULTRA265/H.265/4 2x NIC 320Mbps INPUT 2CH@12MP DECODING METAL 8x SATA HDD PORT UP TO 12TB EACH 1x HDMI/ 1x VGA 1x AUDIO IN 1x AUDIO OUT 16x ALARM IN 4x ALARM OUT 2x FRONT/ 1x REAR USB PORT 240VAC RS485 Features • Support Ultra 265/H.265/H.264 video formats • 16/32/64-channel input • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols • VGA and HDMI independent output (NVR508-64B simultaneous output by default , independent output configurable) • Up to 12 Megapixels resolution recording • 8 SATA HDD, up to 12TB for each HDD • Support N+1 Hot spare • ANR technology to enhance the storage reliability when the network is disconnected • Support cloud upgrade • WARRANTY: 3 years back-to-base manufacturer warranty Tech Specs Decoding Information Decoding Format Ultra 265,H.265,H.264 Decoding Capability Ultra 265/H.265: 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080p@30, 32 x960p@25, 36 x 720p@30, 64 x D1 H.264: 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080p@30, 28 x 960p@25, 30 x 720p@30, 64 x D1 Audio Compression G.711A,G.711U Network Information Incoming Bandwidth 320Mbps Outgoing Bandwidth 160Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP Browser(Plugin) IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows Video/Audio Input Information RCA Audio Input 1-ch Video/Audio Output Information HDMI/ VGA Output HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 Synchronous Playback 16-ch RCA Audio Output 1-ch, RCA Liveview Display Simultaneous Output: VGA: 1/4/6/8/9/16/25/36/64 HDMI: 1/4/6/8/9/16/25/36/64 Independent Output: VGA: 1/4/6/8/9/16/25/32 HDMI: 1/4/6/8/9/16/25/32 Corridor Mode Screen 3/4/5/7/9/10/12/16/32 Two-way Audio Information Two-way Audio 1-ch,RCA(Using the audio input and output) Snapshot Information FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution Recording Information Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Synchronous Playback in Local 16-ch Smart Information VCA Detection by Camera Intrusion detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, UMD(Ultra Motion Detection) VCA Search Behavior Search, People Counting Report, Vehicle Search People Counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), Vehicle Detection, UMD by Camera Total 8-ch Hard Disk Information SATA 8 SATA Interfaces Capacity Up to 16TB for each disk Disk Group Support External Interface Information Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interface USB Front panel: 2 x USB2.0,Rear panel: 2 x USB3.0 RS485 1 RS232 NA Alarm In 16-ch Alarm Out 4-ch Power Supply AC 100～240V Power Consumption: ≤ 32W (without HDD) Working Environment Information Working Temperature -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) Dimensions Information Weight (without HDD) ≤ 4Kg (8.80lb) Dimensions 442mm × 426mm × 89mm (17.4" × 16.8" × 3.5") Certification Information Certification CE,FCC,UL,RoHS,WEEE CE EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035 FCC Part15 Subpart B VideosUniview NVR Features Uniview NVR's: Overview Uniview Company Introduction DownloadsDatasheets Uniview 64CH Network Video Recorder: AI Upto 12MP, 384MBPS INPUT, 8-SATA Prime Series - NVR508-64B

Specifications
