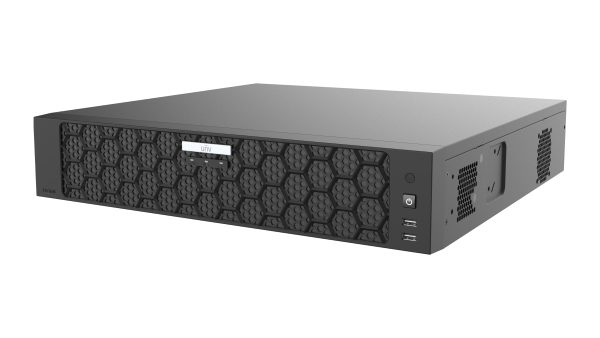

Uniview 32CH Network Video Recorder: AI NVR, Upto 16MP 320MBPS INPUT 4-SATA HDD Prime Series - NVR504-32B-P16

Description

DescriptionUNIVIEW EASY SERIES 32CH BLACK AI NVR Uniview 32ch NVR Record Up to 16MP, HDMI(4K), 4-SATA HDD Up to 8TB for each disk, P2P, Ultra 265/H.265/H.264 (without HDD) Features • Support Ultra 265/H.265/H.264 video formats • 32-channel input • Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols • VGA and HDMI independent output • Up to 16 Megapixels resolution recording • 4 SATA HDD, up to 8TB for each HDD • ANR technology to enhance the storage reliability when the network is disconnected • Support cloud upgrade Datasheet • Uniview 32CH Network Video Recorder: AI NVR, Upto 16MP 320MBPS INPUT 4-SATA HDD Prime Series - NVR504-32B-P16 • Network Video Recorders Quick Guide Tech Specs Model NVR504-16B NVR504-32B Video/Audio Input IP Video Input 16-ch 32-ch Audio Input 1-ch, RCA Network Incoming bandwidth 320Mbps Outgoing bandwidth 160Mbps Remote Users 128 Protocols TCP/IP,P2P,UPnP,NTP,DHCP,PPPoE,HTTP,HTTPS,DNS,DDNS,SNMP,SMTP,RTSP,802.1x,IPV6 Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Two-way Audio 1-ch, RCA(Using the audio input and output) Audio Compression G.711A, G.711U Synchronous Playback 16-ch 16-ch Liveview display 1/4/6/8/9/16 1/4/6/8/9/16/25/32 Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Snapshot FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution Decoding Decoding format Ultra 265/H.265/H.264 Live view/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 Hard Disk SATA 4 SATA interfaces Capacity Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) Smart VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report People Counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata by Camera Total 8-ch General Alarm General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0, 1 x USB2.0 RS232 NA RS485 1 Alarm In 16-ch Alarm Out 4-ch General Power Supply 12V DC/5A Power Consumption: ≤ 20W (without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 440mm × 344mm × 48mm (17.3" × 13.5" × 1.9") Weight (without HDD) ≤ 3.15Kg (6.94lb) Certification Certification CE, FCC, UL, RoHS, WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B

Specifications
