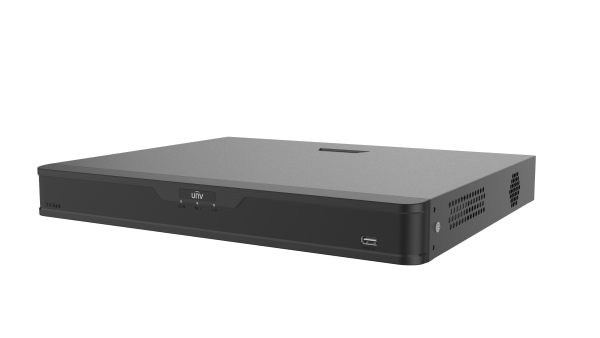

Uniview 8CH Network Video Recorder: upto 12MP, 320MBPS INPUT, 2-SATA HDD, Easy Series - NVR302-08E2-P8

Description

DescriptionNVR302-08E2-P8 is a professional 8 Channel IP Network Video Recorder with the advanced features you are looking for. This NVR can handle up to 12MP Recording Resolution so you have plenty of high resolution options! Even better, Ultra265 technology combines U-Code and H.265 to reduce your storage space and enhance image quality, cutting your storage costs by 75% or more! Speaking of recording capabilities, the NVR has (2) SATA Bays and accepts up to 10TB each bay for a total of 20TB of storage. In addition, ANR technology assures that you have a redundancy for your video data. Since the NVR302-08E2-P8 has various Fisheye De-warping Modes available, you can achieve the full benefit of panoramic or ‘fisheye’ IP cameras. LPR Cameras are also supported. The NVR has 8 PoE Inputs for ease of installation. Therefore, you do not need a separate PoE switch. Features • Support Ultra 265/H.265/H.264 video formats • 8-channel input • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols • Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution • HDMI and VGA independent outputs provided • Up to 12 Megapixels resolution recording • 2 SATA HDDs, Up to 6TB for each HDD • Support cloud upgrade Datasheet • Uniview 8 Channel Network Video Recorder: 2 SATA 8 POE E2 No HDD - NVR302-08E2-P8 - Datasheet • Uniview NVR302-08E2-P8 User Manual • Network Video Recorders Quick Guide Tech SpecsUniview 8 Channel Network Video Recorder: 2 SATA 8 POE E2 No HDD - NVR302-08E2-P8 Video/Audio Input IP Video Input 9-ch 16-ch 32-ch Two-way Audio Input 1-ch, RCA Network Incoming Bandwidth 320Mbps Outgoing Bandwidth 180Mbps 320Mbps Remote Users TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS Prortocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS Browser IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Audio Compression G.711A, G.711U Synchronous Playback 16-ch Live View Display 1/4/6/8/9 1/4/6/8/9/16 1/4/6/8/9/16/25/36 Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Snapshot FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution Decoding Decoding Format Ultra 265, H.265, H.264 Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 9 x 1080P@30 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 16 x 720P@30 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 10 x 1080P@30, 22 x 720P@30, 32 x D1 Hard Disk SATA 2 SATA interfaces Capacity up to 6TB for each HDD eSATA NA Disk Group Support Smart VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking VCA Search Behavior Search, Vehicle Search People Counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), Vehicle Detection by Camera Total 8-ch General Alarm General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 RS232 NA RS485 1 Alarm In 8-ch Alarm Out 2-ch General Power Supply 12VDC/3.3A Power Consumption: ≤ 12 W (without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1") Weight (without HDD) ≤1.8Kg (3.97lb) Certification Certification CE, FCC, UL, RoHS, WEEE CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC Part15 Subpart B, ANSI C63.4

Specifications
