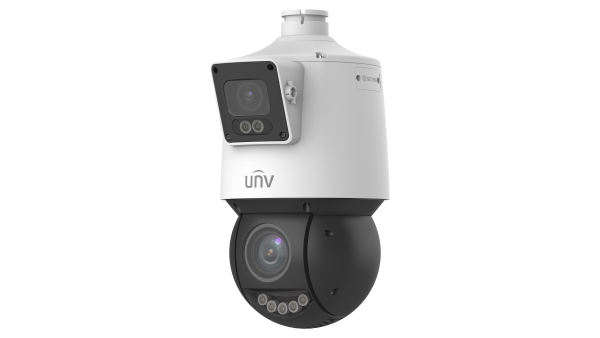

Uniview IPC94144SFW-X25-F40C 4MP+4MP 25X ColorHunter MultiView Dual-Lens PTZ Camera

Description

DescriptionEngineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price. Uniview IPC94144SFW-X25-F40C is a commercial-grade PTZ camera with a 4MP + 4MP dual lens configuration. There is a panoramic 4.0mm lens for covering a wide angle of the scene, and a 4.8-120mm varifocal lens that can be panned, tilted, and zoomed for more details. Features • Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time • Ultra 265, H.265, H.264, MJPEG • 25X optical zoom of PTZ channel allows for closer viewing of subjects • PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule • Lighthunter technology ensures ultra-high image quality in low illumination environment • IR & warm light illumination to deal with different scenes and achieve full-color illumination • DC12V or PoE+(IEEE 802.3at) power supply • Alarm 2 in and 1 out, Audio 1 in and 1 out Datasheet• Uniview Security Camera: 4MP+4MP Lighthunter Dual-lens Network PTZ Camera - IPC94144SFW-X25-F40C - Datasheet Videos Tech SpecsUniview Security Camera: 4MP+4MP Lighthunter Dual-lens Network PTZ Camera - IPC94144SFW-X25-F40C IPC94144SFW-X25-F40C Camera Panorama Detail Sensor 1/1.8", 4MP, CMOS 1/2.7", 4MP, CMOS Min. Illumination Color:0.0005 lux (F1.0, AGC ON) 0 lux with warm light Color:0.003 lux (F1.5, AGC ON) 0 lux with IR Day/Night N/A IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N ＞56dB Lens Lens type 4mm@F1.0 4.8~120mm@F1.5, AF automatic focusing and motorized zoom lens Optical Zoom N/A 25X Iris Fixed aperture; F1.0 Auto; F1.5(W)~F3.8(T) Field of View (H) 94.9° 55.46° ~ 3.09° Field of View (V) 51.5° 32.94° ~ 1.73° Field of View (D) 116.7° 68.22° ~ 3.65° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4 (Panorama) 62.1 (203.6 ft) 24.8 (81.5 ft) 12.4 (40.7 ft) 6.2 (20.4 ft) 4.8 (Detail) 123.8 (406.0 ft) 49.5 (162.4 ft) 24.8 (81.2 ft) 12.4 (40.6 ft) 120 (Detail) 2475.0 (8120.1 ft) 990.0 (3248.0 ft) 495.0 (1624.0 ft) 247.5 (812.0 ft) Illuminator IR Range N/A Up to 100m (328.1 ft) Warm Light Range Up to 30m (98.4 ft) N/A Wavelength N/A 850nm (IR) Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Main Stream: 4MP (2688*1520),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps ~ 16 Mbps U-code Support ROI Up to 8 areas Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 4 areas per scene 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital defog Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking N/A Support General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK User/Host Up to 32 users. 3 user levels: administrator, operator and common user Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive EZView Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Pan & Tilt Pan Range N/A 360° Pan Speed N/A 0.1°/s ~ 80°/s Preset speed: N/A Preset speed: 80°/s Tilt Range 18° ± 5° -15° ~ 90° Tilt Speed N/A 0.1°/s ~ 80°/s Preset speed: N/A Preset speed: 80°/s Number of Presets 1024 Preset Patrol 16 patrols, up to 64 presets for each patrol Route Patrol 16 patrols, up to 32 actions for each patrol Recorded Patrol 16 patrols, up to 128 actions for each patrol Patrol Stay Time 15s~1800s Preset Image Freeze N/A Home Position Support Interface Audio I/O 1/1 Alarm I/O 2/1 Serial Port 1 RS485 Built-in Mic N/A Built-in Speaker Support Wi-Fi N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output N/A Certification EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) Safety CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) Environment CE-RoHS (2011/65/EU;(EU)2015/863) Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) General Power DC12V (±25%), PoE+(IEEE 802.3at) Power consumption: MAX 24W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Φ163 x 304mm (Φ6.4” x 12.0”) Weight 2.27kg (5.00lb) Working Environment -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing) Storage Environment -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing) Surge protection 6KV Reset button Support 3-Years Warranty Uniview 3-Years Manufacturer Warranty!Our Uniarch products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty! ✔️ Authorised Uniview Dealer! ✔️ Australian Stock, No Grey Imports! ✔️ 3-Years Manufacturer Warranty! Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost. The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible. Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer. We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address. You can contact us by email at support@secsource.com.au or phone on 1300 049 519.

Specifications
