Description

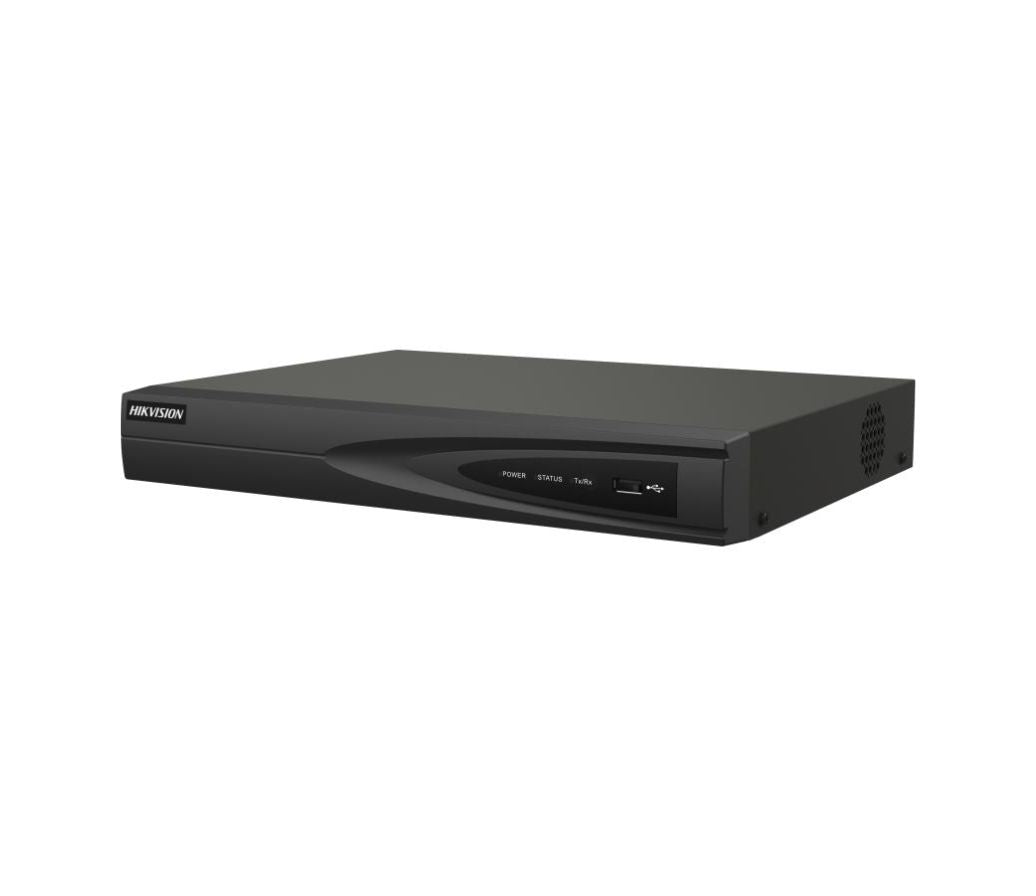

DS-7608NI-Q1 (D) 8CH NVR

The DS-7608NI-Q1 (D) is built for buyers who want dependable IP camera recording with sharper video, easier playback, and better storage efficiency without making the system harder to manage. It supports up to 8 IP camera inputs, records at resolutions up to 8 MP, and uses H.265+ compression to help reduce storage usage by up to 75%.

This matters if you want clear footage, room to grow, and a recorder that helps you find important video faster. With up to 4K HDMI output, smart search and smart playback, Motion Detection 2.0, multiple VCA event support, and Hik-Connect remote access, it is designed to make daily monitoring and video review more efficient.

It is especially well suited for buyers who need a practical 8-channel NVR for home, office, retail, or light commercial security, and want a system that balances image quality, storage efficiency, and simple remote management.

Ideal Applications

  • Home and residential IP surveillance
  • Small business and office security
  • Retail stores and storefront monitoring
  • Warehouse and back-room surveillance
  • Reception areas and entry-point monitoring
  • Light commercial multi-camera security systems

Common Uses

  • Recording up to 8 IP cameras in one centralized system
  • Managing higher-resolution cameras up to 8 MP
  • Reducing storage use with H.265+ compression
  • Reviewing footage faster using smart search and smart playback
  • Remote viewing and management through Hik-Connect
  • Using HDMI and VGA outputs simultaneously for local monitoring

Key Features

  • Up to 8-channel IP camera input — gives you enough capacity for a full small-property system without paying for more recorder than you need.
  • H.265+/H.265/H.264+/H.264 support — helps reduce storage demands while keeping video quality high, which matters when you want longer retention without constantly upgrading hard drives.
  • Up to 8 MP recording resolution — gives you sharper footage for clearer identification and better detail during playback.
  • 4K HDMI output — makes local viewing clearer on a compatible monitor, which helps when you need to review important details.
  • Smart search and smart playback — helps you find key moments faster instead of wasting time scrubbing through long video timelines.
  • Motion Detection 2.0 — adds smarter event handling across 4 channels to make monitoring more efficient.
  • Multiple VCA event support — supports advanced video content analytics for more intelligent surveillance workflows.
  • Configurable special camera smart functions — supports VCA detection such as motion, line crossing, and intrusion for more targeted event awareness.
  • Up to 80 Mbps incoming bandwidth — helps the recorder handle multiple connected IP streams more smoothly.
  • Hik-Connect support — makes remote access and network management easier when you need to check cameras away from the site.

Model

Available Model
DS-7608NI-Q1 (D)
Product Type
NVR

Motion Detection 2.0

Human/Vehicle Analysis
4-ch

Video and Audio

IP Video Input
8-ch
Incoming Bandwidth
80 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
1-ch, 4K (4096 × 2160)/30 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
VGA Output
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode
HDMI/VGA simultaneous output
Audio Output
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio
1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

Decoding Format
H.265+/H.265/H.264+/H.264
Recording Resolution
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback
8-ch
Decoding Capability
1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
The length or width of camera resolution (each track) cannot exceed 4096 pixels.
Stream Type
Video, Video & Audio
Audio Compression
G.711ulaw/G.711alaw/G.722/G.726

Network

Remote Connection
32
Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA
1 SATA interface
Capacity
Up to 8 TB capacity for each disk
USB Interface
2 × USB 2.0
Alarm In/Out
N/A (4/1 is optional)

General

Power Supply
12 VDC, 1.5 A
Consumption
≤ 10 W (without HDD)
Working Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity
10% to 90%
Dimension (W × D × H)
320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight
≤ 1 kg (without HDD, 2.2 lb.)

Certification

FCC
FCC Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Front Page Feature Extraction

IP Camera Inputs
Up to 8-ch IP camera inputs
Video Formats
H.265+/H.265/H.264+/H.264 video formats
Decoding Capacity
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Incoming Bandwidth
Up to 80 Mbps incoming bandwidth
Compression Benefit
H.265+ compression effectively reduces the storage space by up to 75%
HD Video Output
Provide simultaneous HDMI and VGA outputs
HDMI Video Output
HDMI video output at up to 4K resolution
Storage and Playback
1 SATA interface for HDD connection (up to 8 TB capacity per HDD)
Playback Efficiency
Smart search/smart playback to improve the playback efficiency
Smart Function
4-ch Motion Detection 2.0
VCA Support
Support multiple VCA (Video Content Analytics) events
Special Camera Smart Functions
Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)
Ethernet Interface
1 self-adaptive 10/100 Mbps Ethernet interface
Remote Management
Hik-Connect for easy network management

Physical Interface

1
LAN interface
2
AUDIO OUT
3
AUDIO IN
4
HDMI interface
5
VGA output (DB9 connector)
6
USB interface
7
Power supply
8
Power switch
9
GND

Accessories Found

Power Adapter
Implied by listed power supply requirement: 12 VDC, 1.5 A
USB Support
2 × USB 2.0
Audio Connectors
AUDIO IN and AUDIO OUT shown in physical interface diagram
Rear Panel Connections
Physical interface page shows LAN, audio out, audio in, HDMI, VGA, USB, power supply, power switch, and GND
